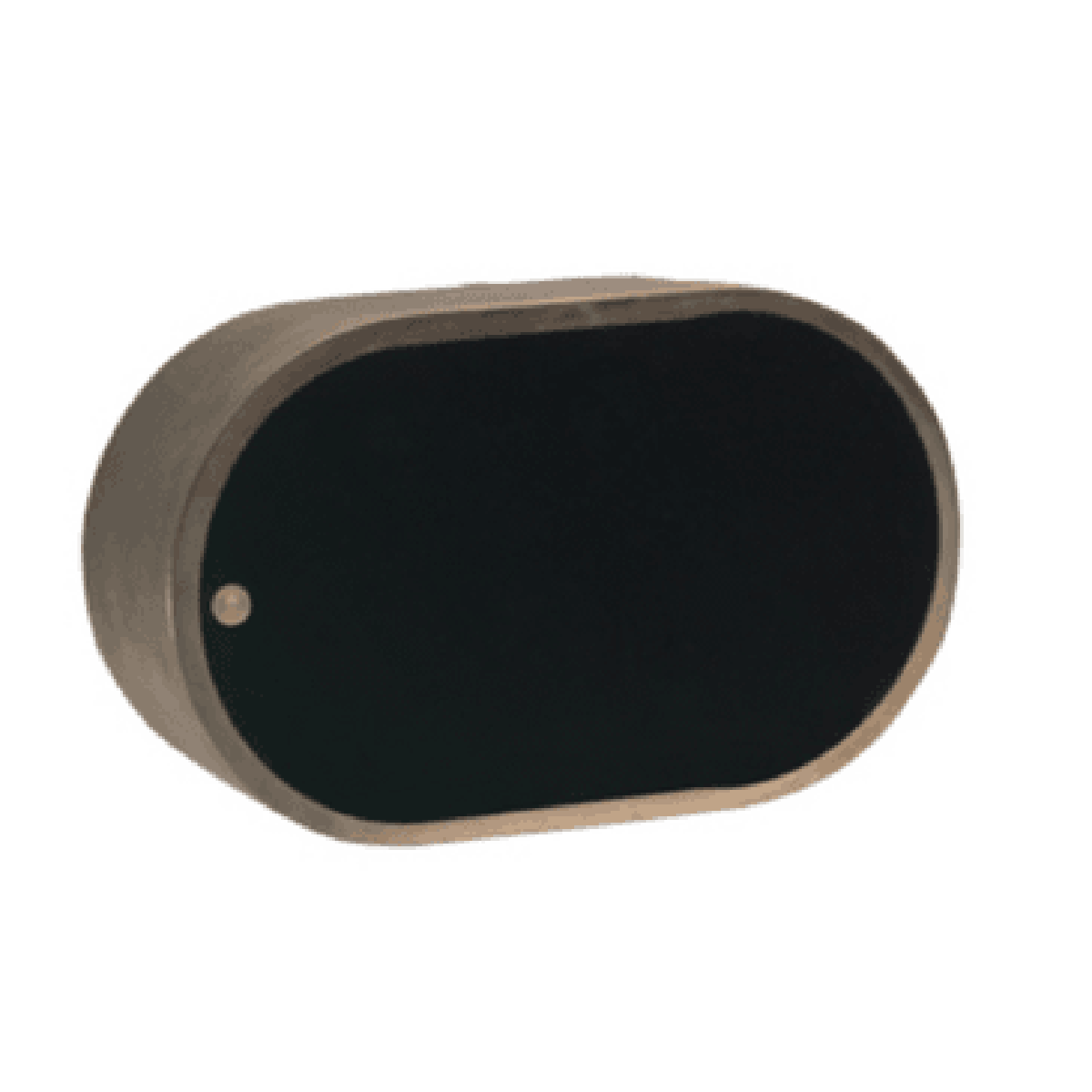

Transdutor Pocket-Mount Lowrance XSonic Airmar PM275LH-W

The PM275LH-W is a pocket or keel-mounted CHIRP transducer, ideal for sportfishing and commercial vessels 8 m (25 ft) and up. This dual-channel transducer combines Low CHIRP frequencies to accurately track the bottom in deep water, with High CHIRP at a constant 25° beam width for the best resolution and coverage in the upper water column and in shallower depths.

Dual Black 9 pin connectors

Cable length 10 m (33.0 ft)

Specifications

Weight 5.3 kg (11.6 lb.)

Recommended Boat Length 8 m (25′) and above

Hull Material Solid fiberglass only

Hull Deadrise Accommodates any deadrise angle based on the custom cavity construction

Acoustic Window Urethane

Transducer Element Eight internal broadband ceramic assemblies
