Transdutor de Casco Navico XSonic Airmar SS75M 12 Deg

Fora de estoque

Desconto de 10% para pagamentos à vista!

  • Produtos originais com garantia
  • Distribuidor autorizado
  • Pagamento seguro
Até 10x sem Juros

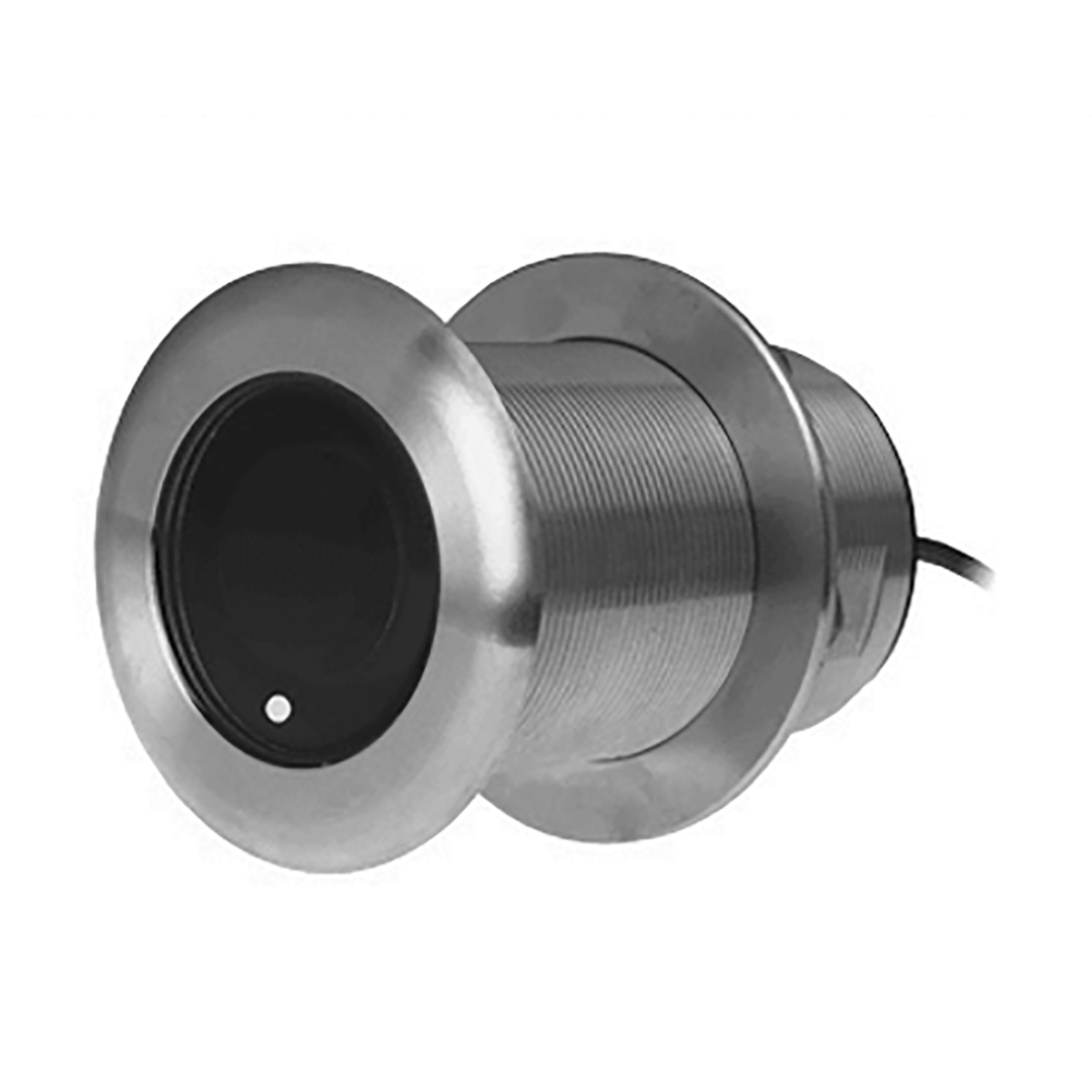

SS75M Depth/Temperature Transducer 12° Tilt


The SS75M is a Stainless Steel, thru-hull, tilted, medium-frequency (80-130kHz), depth and temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings.


Key Features




CHIRP transducers enable bottom detection with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures.




Calculates how deep the water is, so that you can avoid running aground, whilst also incorporating a temperature sensor for accurate water temperature readings.


Easy To Install


Medium Frequency


CHIRP range is 80kHz-130kHz for good target detail in shallow water and excellent bottom tracking in deep water.


Highly Accurate


Provides extremely accurate data.


12° Tilt


The 12° tilt is ideal for boats with a 8° to 15° hull deadrise.


Low Profile


The low profile housing minimizes drag with just 5mm extending outside of the hull.


Plug & Play Connection


Easily connect to NSSevo3




Dimensions (W x H x D) 94 (d) x 134 mm (3.7 x 5.3″)

Mounting Type Through Hull

Weight 1.4 kg (3lbs)




Frequencies 80-130 kHz

Max Depth 300m (900 ft) depending on sonar

Peso 3,100 kg
Dimensões 13,0 × 28,0 × 20,0 cm
