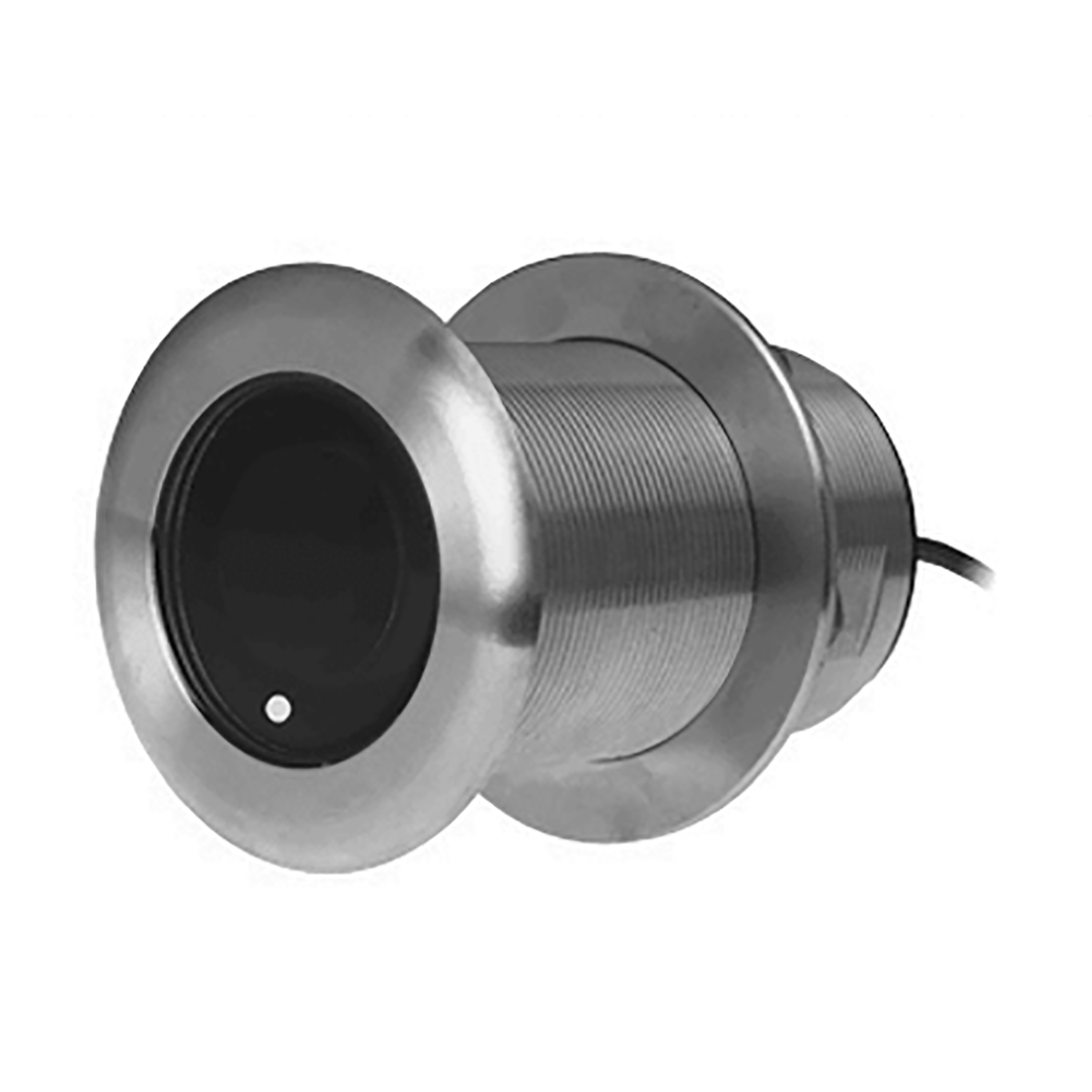

XSONIC SS75H Depth/Temperature Transducer 20° Tilt
The SS75H is a Stainless Steel, thru-hull, tilted, high-frequency (130-210kHz), depth and temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings.
Key Features
CHIRP
CHIRP transducers enable bottom detection with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures.
Depth/Temperature
Calculates how deep the water is, so that you can avoid running aground, whilst also incorporating a temperature sensor for accurate water temperature readings.
Easy To Install
High Frequency
CHIRP range is 130kHz-210kHz for good target detail in shallow water and excellent bottom tracking in deep water.
Highly Accurate
Provides extremely accurate data.
20° Tilt
The 20° tilt is ideal for boats with a 16° to 24° hull deadrise.
Low Profile
The low profile housing minimizes drag with just 5mm extending outside of the hull.
Plug & Play Connection
Easily connect to NSSevo3, Lowrance
Calculates how deep the water is
Temperature sensor for accurate water temperature readings.
CHIRP range is 130kHz-210kHz for good target detail in shallow water and excellent bottom tracking in deep water.
The low profile housing minimizes drag with just 5mm extending outside of the hull.
The 20° tilt is ideal for boats with a 16° to 24° hull deadrise.
Physical
Dimensions (W x H x D) 94 (d) x 134 mm (3.7 x 5.3″)
Mounting Type Through Hull
Weight 1.4 kg (3lbs)
Radar
Frequencies 130-210 kHz
Max Depth 215m (700 ft) depending on sonar
