Transdutor de Casco Navico XSonic Airmar SS75H 12 Deg

Fora de estoque

Desconto de 10% para pagamentos à vista!

  • Produtos originais com garantia
  • Distribuidor autorizado
  • Pagamento seguro
Até 10x sem Juros

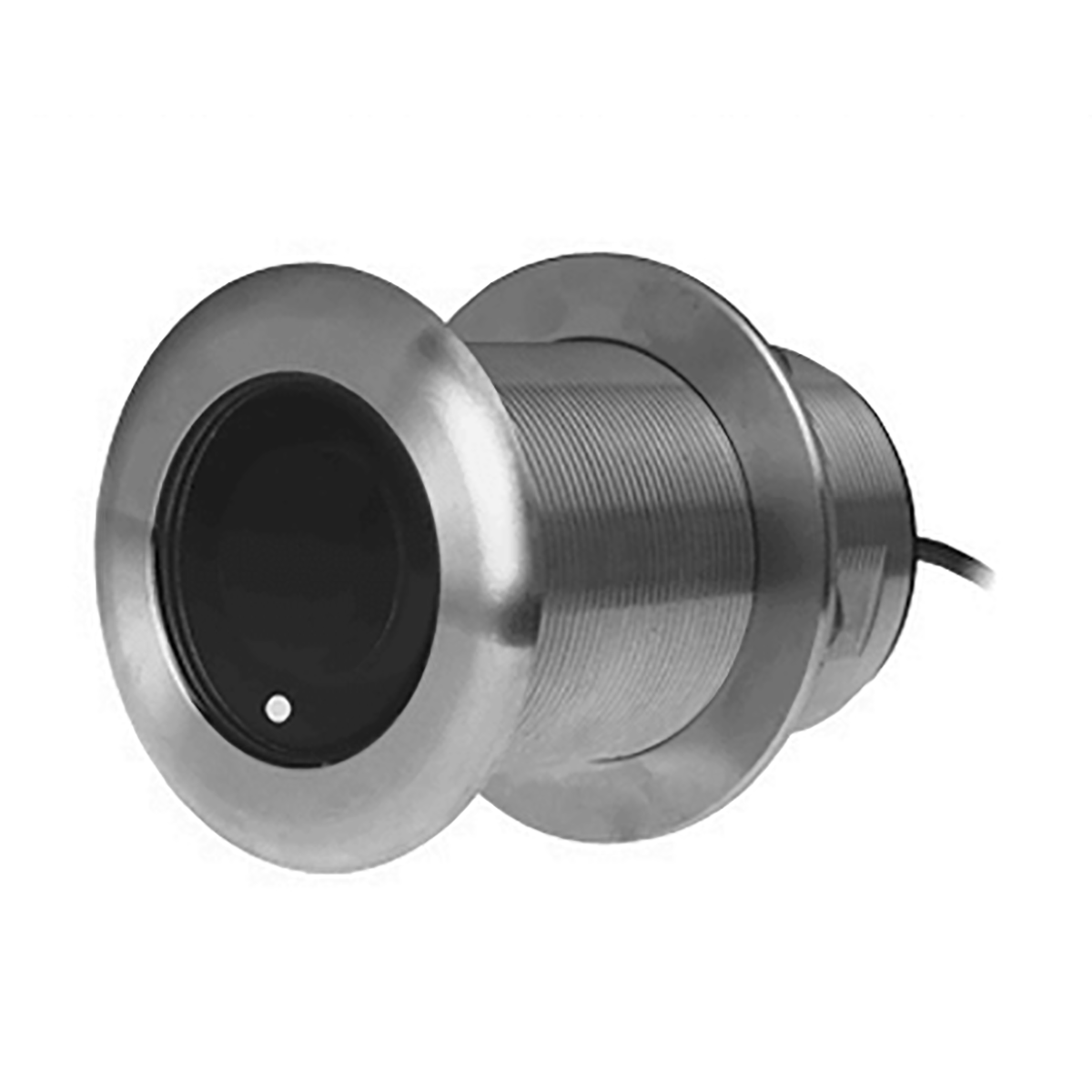

SS75H Depth/Temperature Transducer 12° Tilt



The SS75H is a Stainless Steel, thru-hull, tilted, high-frequency (130-210kHz), depth and temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings.



Key Features



CHIRP



CHIRP transducers enable bottom detection with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures.



Depth/Temperature



Calculates how deep the water is, so that you can avoid running aground, whilst also incorporating a temperature sensor for accurate water temperature readings.



Easy To Install



High Frequency



CHIRP range is 130kHz-210kHz for good target detail in shallow water and excellent bottom tracking in deep water.



Highly Accurate



Provides extremely accurate data.



12° Tilt



The 12° tilt is ideal for boats with a 8° to 15° hull deadrise.



Low Profile



The low profile housing minimizes drag with just 5mm extending outside of the hull.



Plug & Play Connection



Easily connect to NSSevo3 S5100



Calculates how deep the water is

Temperature sensor for accurate water temperature readings.

CHIRP range is 130kHz-210kHz for good target detail in shallow water and excellent bottom tracking in deep water.

The low profile housing minimizes drag with just 5mm extending outside of the hull.

The 12° tilt is ideal for boats with a 8° to 15° hull deadrise



Physical



Dimensions (W x H x D) 94 (d) x 134 mm (3.7 x 5.3″)

Mounting Type Through Hull

Weight 1.4 kg (3lbs)



Radar



Frequencies 130-210 kHz

Max Depth 215m (700 ft) depending on sonar

Peso 3,100 kg
Dimensões 13,0 × 28,0 × 20,0 cm
