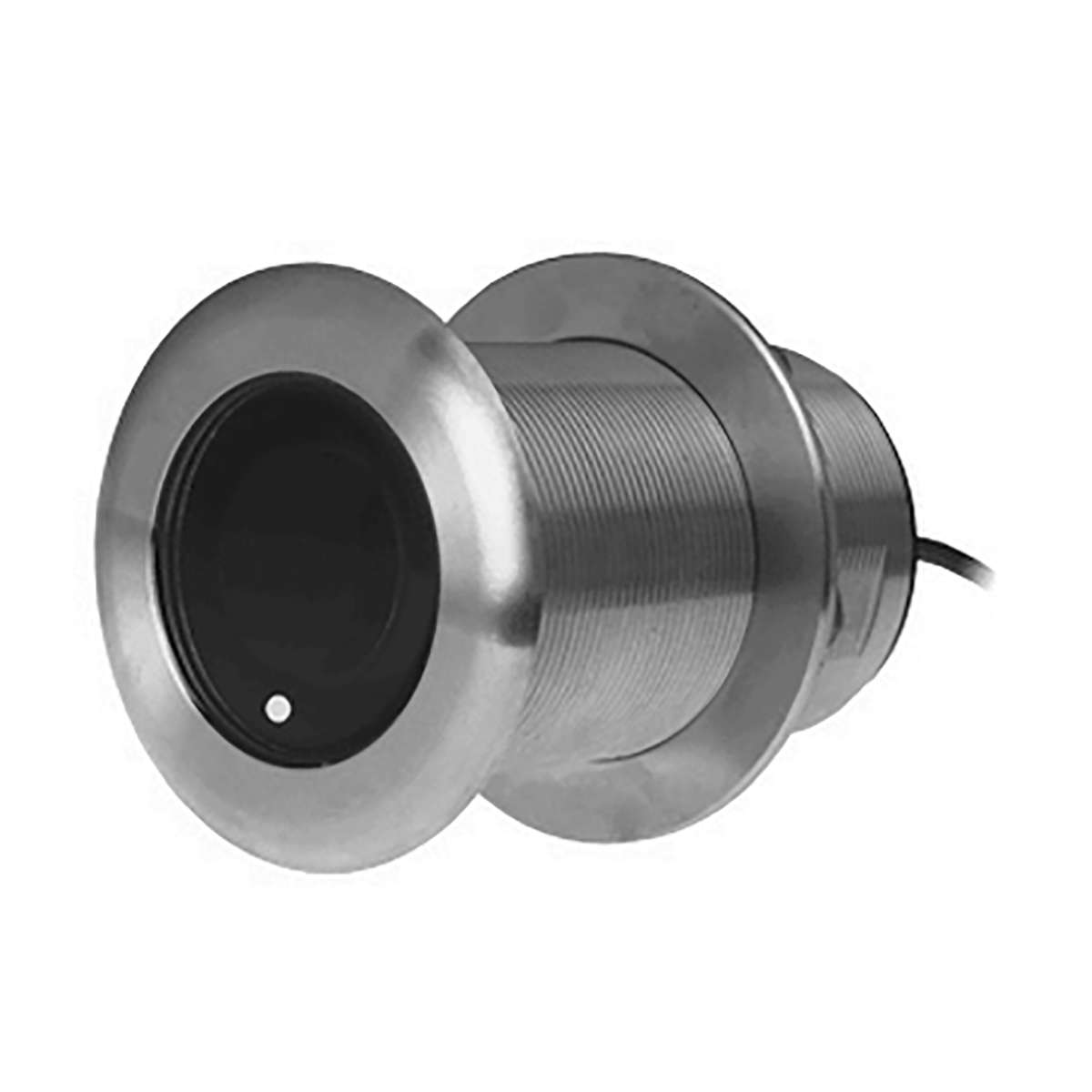

SS75H Depth/Temperature Transducer 0° Tilt
The SS75H is a Stainless Steel, thru-hull, non-tilted, high-frequency (130-210kHz), depth and temperature transducer.
Key Features
CHIRP
CHIRP transducers enable bottom detection with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures.
Depth/Temperature
Calculates how deep the water is, so that you can avoid running aground, whilst also incorporating a temperature sensor for accurate water temperature readings.
Easy To Install
High Frequency
CHIRP range is 130kHz-210kHz for good target detail in shallow water and excellent bottom tracking in deep water.
Highly Accurate
Provides extremely accurate data.
The 0° tilt is ideal for boats with a 0° to 14° hull deadrise.
Low Profile
The low profile housing minimizes drag with just 5mm extending outside of the hull.
Plug & Play Connection
Easily connect to NSSevo3 or Lowrance
Calculates how deep the water is
Temperature sensor for accurate water temperature readings.
CHIRP range is 130kHz-210kHz for good target detail in shallow water and excellent bottom tracking in deep water.
The low profile housing minimizes drag with just 5mm extending outside of the hull.
The 0° tilt is ideal for boats with a 0° to 14° hull deadrise
Physical
Dimensions (W x H x D) 94 (d) x 134 mm (3.7 x 5.3″)
Mounting Type Through Hull
Weight 1.4 kg (3lbs)
Radar
Frequencies 130 – 210 kHz
Max Depth 215m (700 ft) depending on sonar
