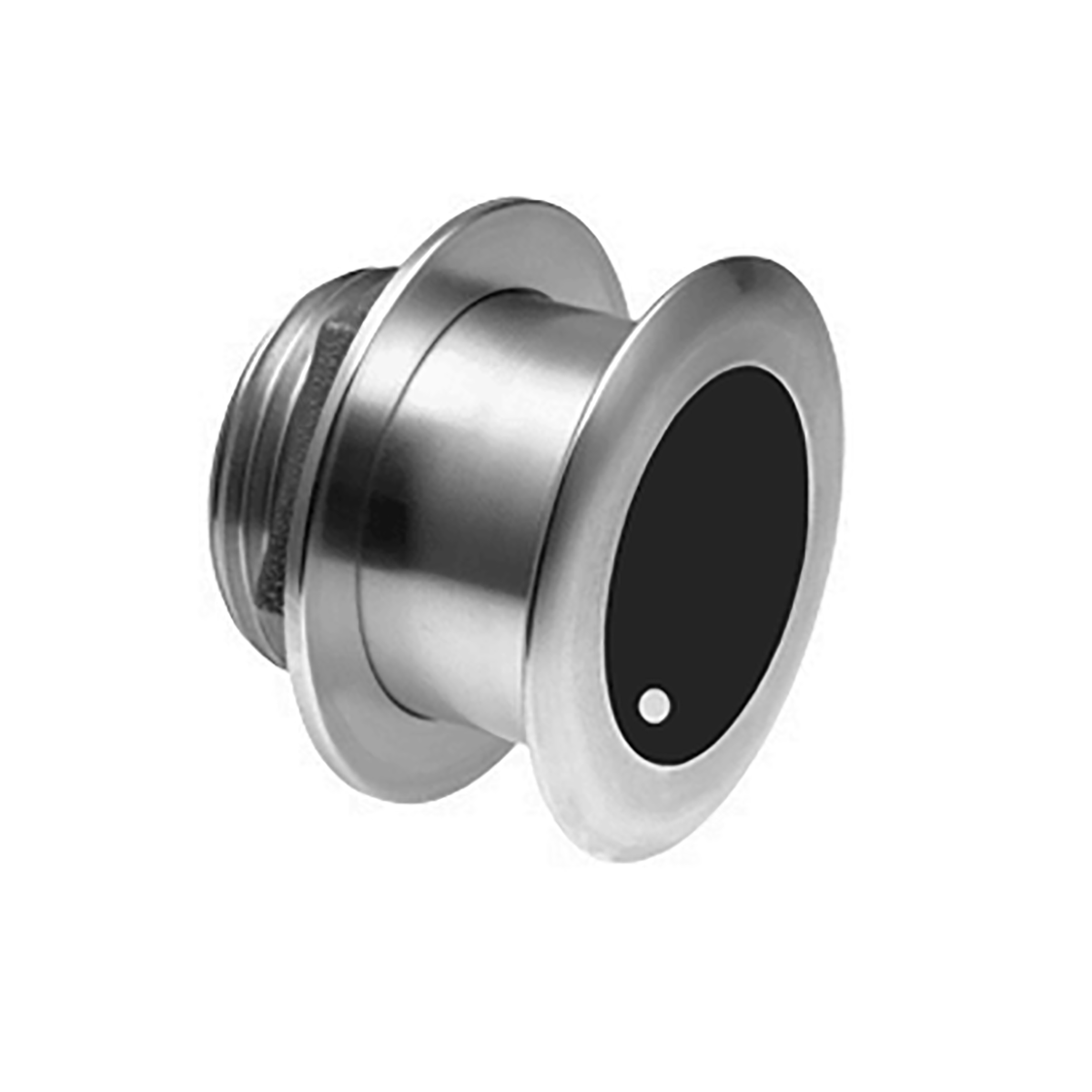

The SS175H-W is a stainless steel, thru-hull CHIRP transducer, ideal for sportfishing and commercial vessels up to 8 m (25 ft) in size. This single-channel transducer offers High CHIRP combined with a wide beam for the best resolution and coverage in shallower depths.
Key Features
130-210 kHz High CHIRP with wide 25° beam for excellent fish targets
Up to 310 m (1000 ft) range with High CHIRP
1 internal broadband ceramic
Thru-hull with stainless steel housing
Suitable for fiberglass and wood hulls
Ideal for sportfishing and commercial vessels up to 8 m (25 ft)
Available in 0°, 12°, or 20° tilted versions
Recommended for use with Simrad NSSevo3 Lowrance HDS Gen3 multifunction displays
130-210 kHz High CHIRP with wide 25° beam for excellent fish targets
Up to 310 m (1000 ft) range with High CHIRP
1 internal broadband ceramic
Thru-hull with stainless steel housing
Suitable for fiberglass and wood hulls
Ideal for sportfishing vessels up to 8 m (25 ft)
Available in 0°, 12°, or 20° tilted versions
Specifications
Weight 2.7 kg (6 lb.)
Recommended Boat Length Up to 11 m (36′)
Hull Material Compatible with all hull materials
Hull Deadrise 8-15°
Acoustic Window Urethane
Hole Diameter Fiberglass or wood hull—95 mm or 3-3/4″
Hole Diameter Metal hull—105 mm or 4-1/8″
Transducer Element One internal ceramic assembly
