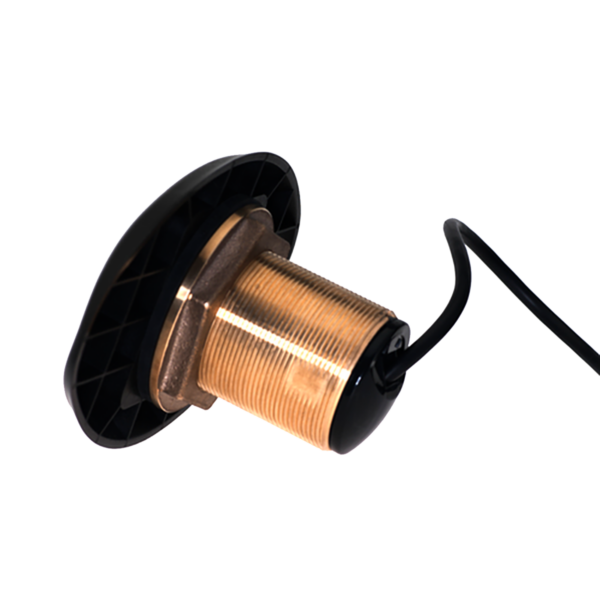

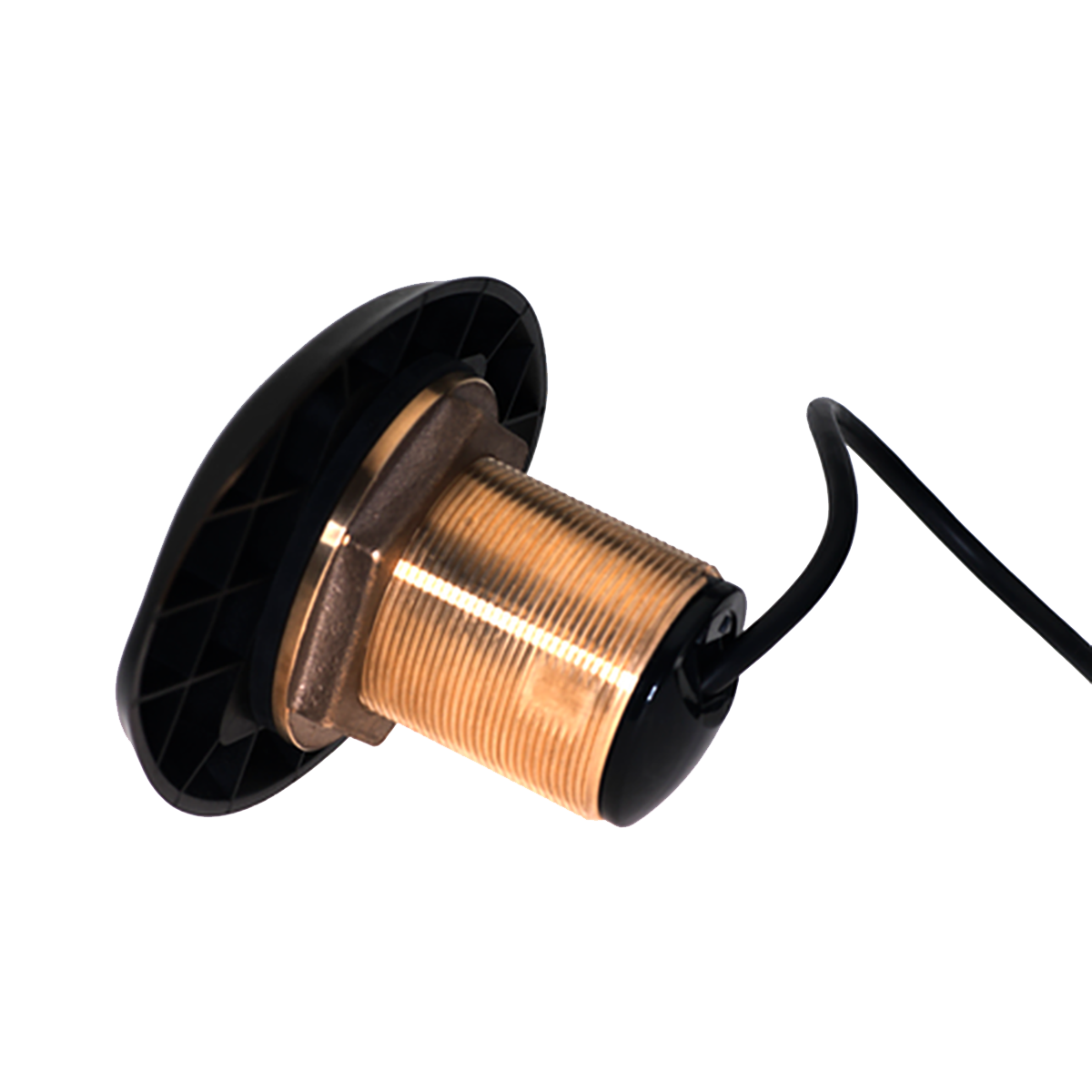

Transdutor de Casco Navico HDI Bronze XSonic 20 Deg

Introducing NEW Bronze Hybrid Dual Imaging™ (HDI) tilted element thru hull transducers-

Provides 50/200kHz traditional frequencies PLUS 455/800kHz Down Scan Imaging plus temperature

Available in 0°12°20°tilt angles

10 m (33 ft) cable

Performance

Beam Width at -3dB

50kHz 45°

200kHz 11°

455kHz

Fore to aft 2.8°

Port to starboard 56°

800kHz

Fore to aft 1.6°

Port to starboard 32°

Connection

The transducer comes with a 33 ft cable and Black 9 Pin connector which plugs directly into a compatible echosounder. The transducer must be selected in the installation menu on the device.
