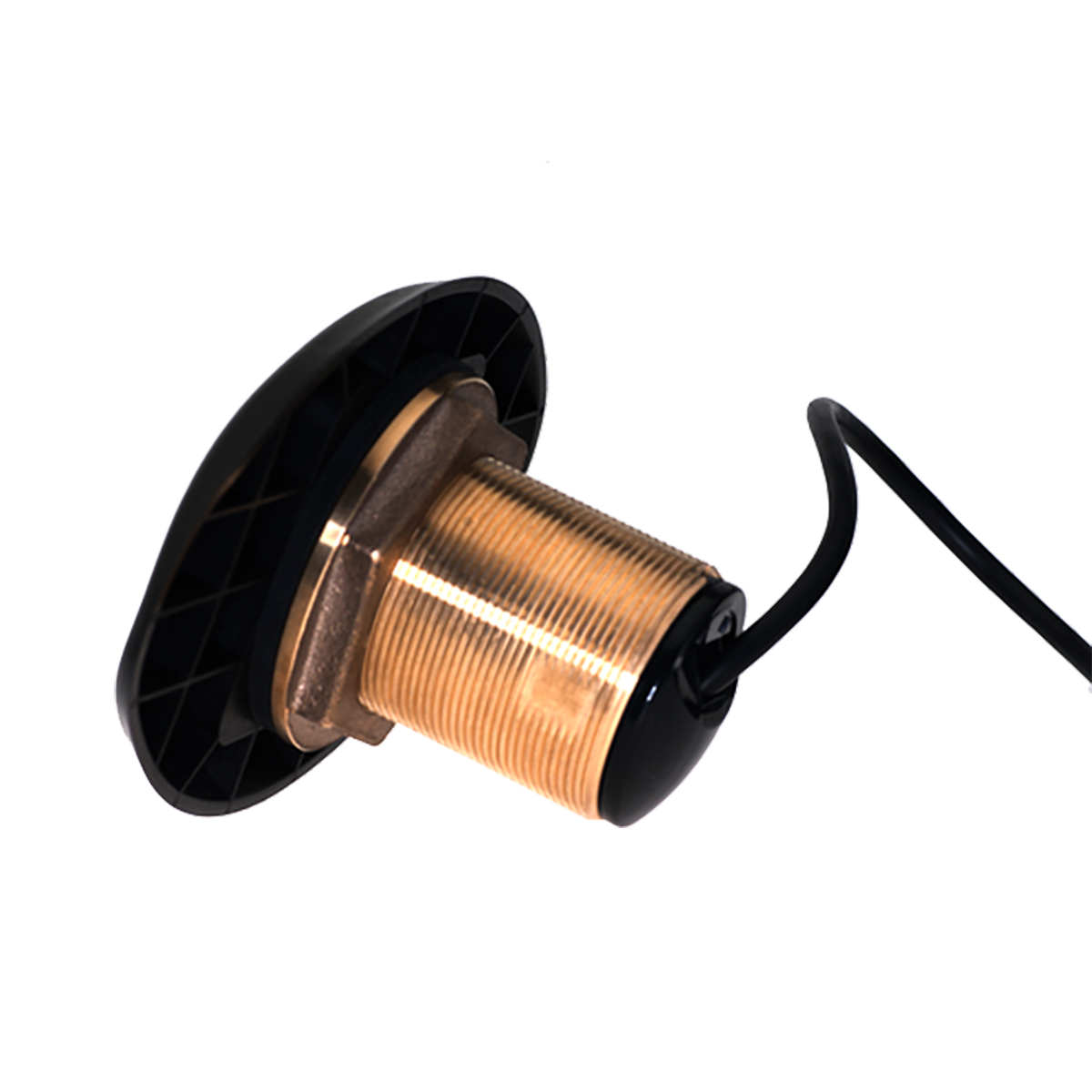

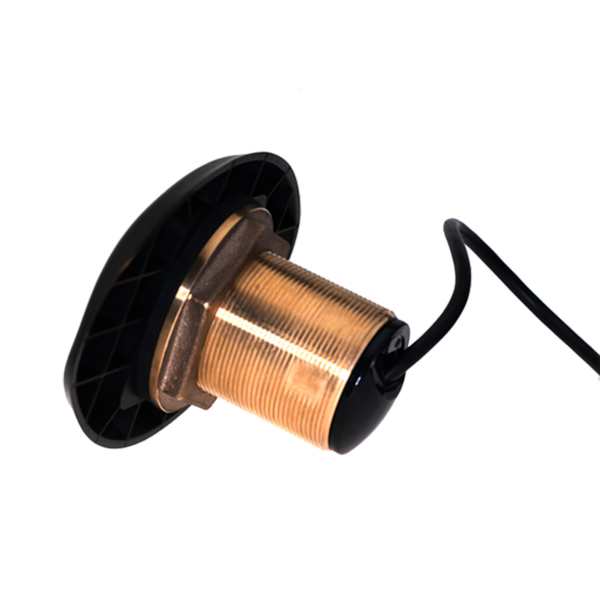

Transdutor de Casco Navico HDI Bronze XSonic 0 Deg

Introducing NEW Bronze Hybrid Dual Imaging™ (HDI) tilted element thru hull transducers



Provides 50/200kHz traditional frequencies PLUS 455/800kHz Down Scan Imaging plus temperature

Available in 0°12°20°tilt angles

10 m (33 ft) cable



Performance





Beam Width at -3dB



50kHz 45°

200kHz 11°

455kHz

Fore to aft 2.8°

Port to starboard 56°

800kHz

Fore to aft 1.6°

Port to starboard 32°



Connection



The transducer comes with a 10 m (33 ft) cable and black 9 pin connector which plugs directly into a compatible echo sounder. The transducer must be selected in the installation menu on the device.



Provides 50/200kHz traditional frequencies PLUS 455/800kHz Down Scan Imaging plus temperature



Available in 0°12°20°tilt angles



10 m (33 ft) cable



Radar



Frequencies 50/200 kHz & 455 800 kHz

Max Depth 350m (1200 ft) depending on Sonar
