Transdutor de Casco Navico Airmar XSonic SS60 0 Deg

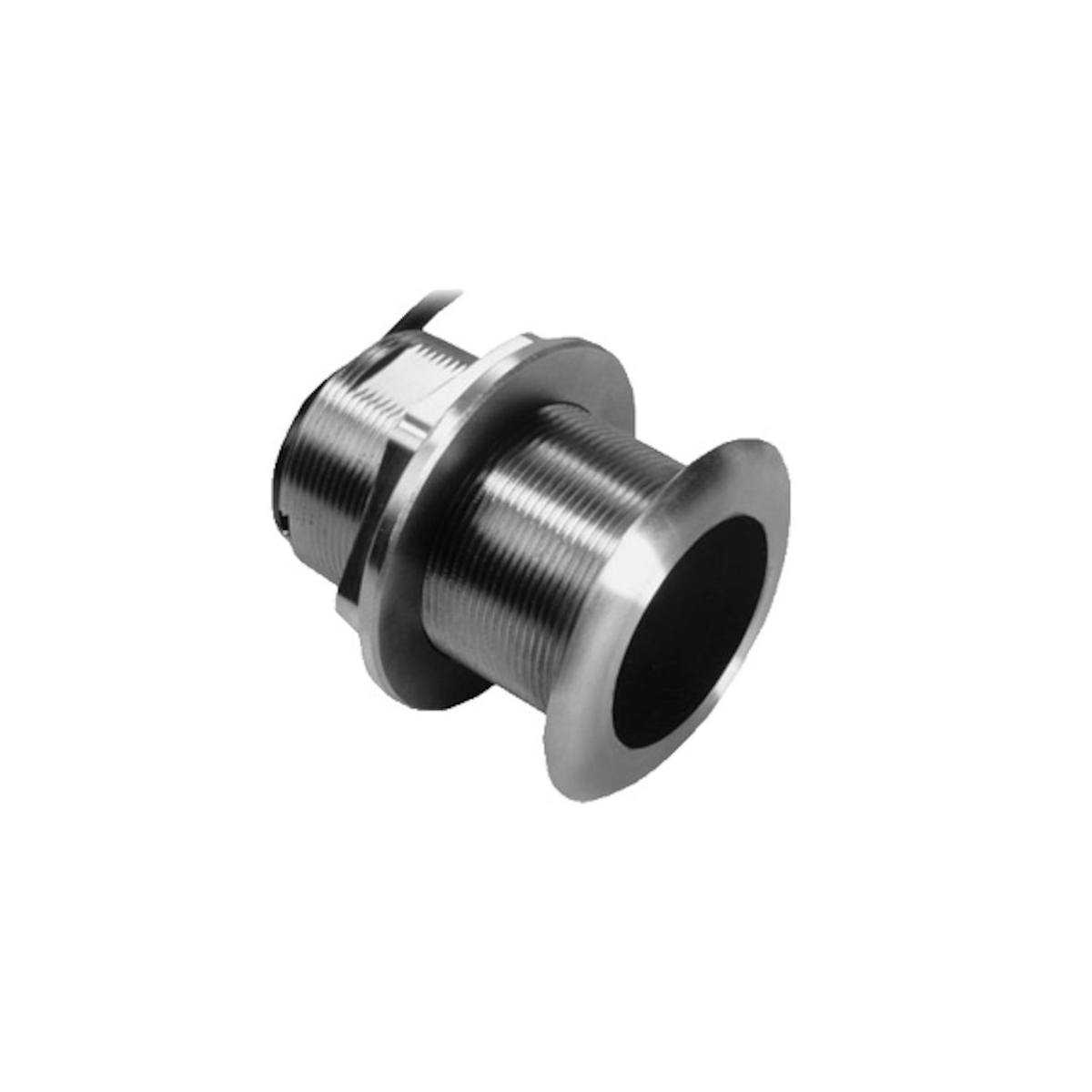

SS60 Depth/Temperature Transducer 0° Tilt



The SS60 is a Stainless Steel, thru-hull, tilted, dual-frequency, depth and temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings.



Key Features



Depth/Temperature



Calculates how deep the water is, so that you can avoid running aground, whilst also incorporating a temperature sensor for accurate water temperature readings.



Easy To Install



Dual Frequency



Works at 50 kHz and 200 kHz for good target detail in shallow water and excellent bottom tracking in deep water.



Highly Accurate



Provides extremely accurate data.



0° Tilt



The 0° tilt is ideal for boats with a 0° to 14° hull deadrise.



Low Profile



The low profile housing minimises drag with just 5mm extending outside of the hull.



Plug & Play Connection



Easily connect to Simrad NSSevo3 or Lowrance HDS Gen3



Physical



Dimensions (W x H x D) 84 (d) x 95 mm (3.3 x 3.75)

Weight 1.4 kg (3 lb)



Radar



Frequencies 50/200 kHz

Max Depth 350m (1200 ft) depending on Sonar
