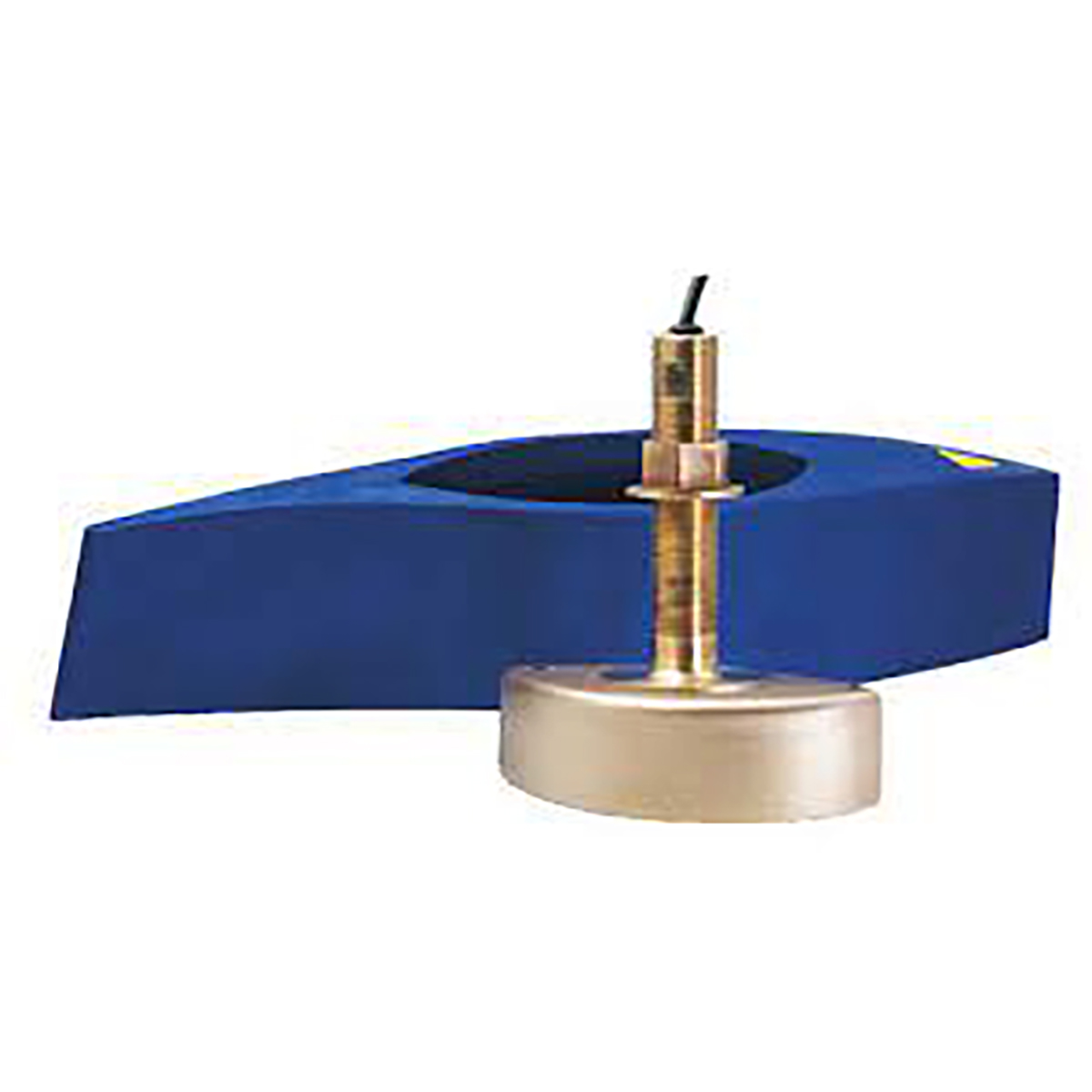

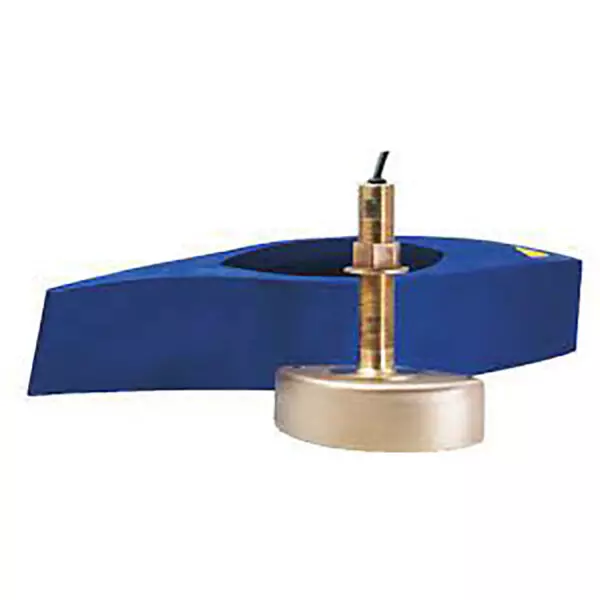

Transdutor de Casco Navico Airmar XSonic B285M CHIRP

Fora de estoque

Desconto de 10% para pagamentos à vista!

  • Produtos originais com garantia
  • Distribuidor autorizado
  • Pagamento seguro
Até 10x sem Juros

Medium frequency delivers the right combination of coverage under the boat, extended depth range, and the ability to produce clean and accurate target and structure returns in mid to deeper water. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths up to 457 m (1,500′) and delivers ultra-clear target resolution.


This model is also ideal for single-channel sounder applications where operating in Chirp mode provides a greater opportunity to see what is in the water column. Simply create pre-sets for 85 and 135 kHz and toggle between wide and narrow beams for scouting an area and then pinpointing structure.


The included high-performance fairing improves broadband performance at speeds over 30 knots (34 MPH).


The B285M transmits across the medium-frequency, 85 to 135 kHz band.


Depth and fast-response water-temperature sensor


1 kW with a maximum depth of 457 m (1,500′)

Medium frequency: 85 to 135 kHz

16° to 11° beamwidth

50 kHz of total bandwidth

Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth

Medium frequency delivers excellent shallow to mid-depth performance, bottom detail, and fish-target separation

Bronze housing for use on planing or displacement hull

High-performance fairing for optimal performance at higher speeds




Weight 4.2 kg (9.2 lb.)

Recommended Boat Length 8 m (25′) and above

Hull Material Fiberglass or wood

Hull Deadrise Up to 26° with fairing

Acoustic Window Urethane

Hole Diameter 30 mm or 1-3/16″

Includes High-performance fairing and mounting hardware

Transducer Element One internal ceramic assembly

Peso 5,000 kg
Dimensões 12,0 × 30,0 × 20,0 cm
