Get more coverage under your boat with Airmar’s unique wide-beam, high-frequency, Chirp-ready transducer. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high-frequency band results in superior resolution. The constantly wide beam provides twice the coverage and excellent fish arches on the display compared to most high-frequency, narrow-beam transducer options.
The included high-performance fairing improves broadband results at speeds over 30 knots (34 MPH).
The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 152 m (500′).
The low-frequency band and 1 kW of power also support great deep-water performance. Get the best of both worlds with Airmar’s dual-frequency, Chirp-ready transducers with wide-beam coverage.
Note: Dual channel sonar ports required! (NSSevo3S, S5100 Module etc)
Features
Depth and fast-response water-temperature sensor
1 kW for great deep-water performance from the low frequency
Low frequency: 42 to 65 kHz
25° to 16° beamwidth
Maximum depth of 914 m (3,000′)
High frequency: 150 to 250 kHz
25° constant beamwidth
Maximum depth of 152 m (500′)
123 kHz of total bandwidth from one transducer
Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
High wide beamwidth yields more coverage for detecting fish in the upper-water column

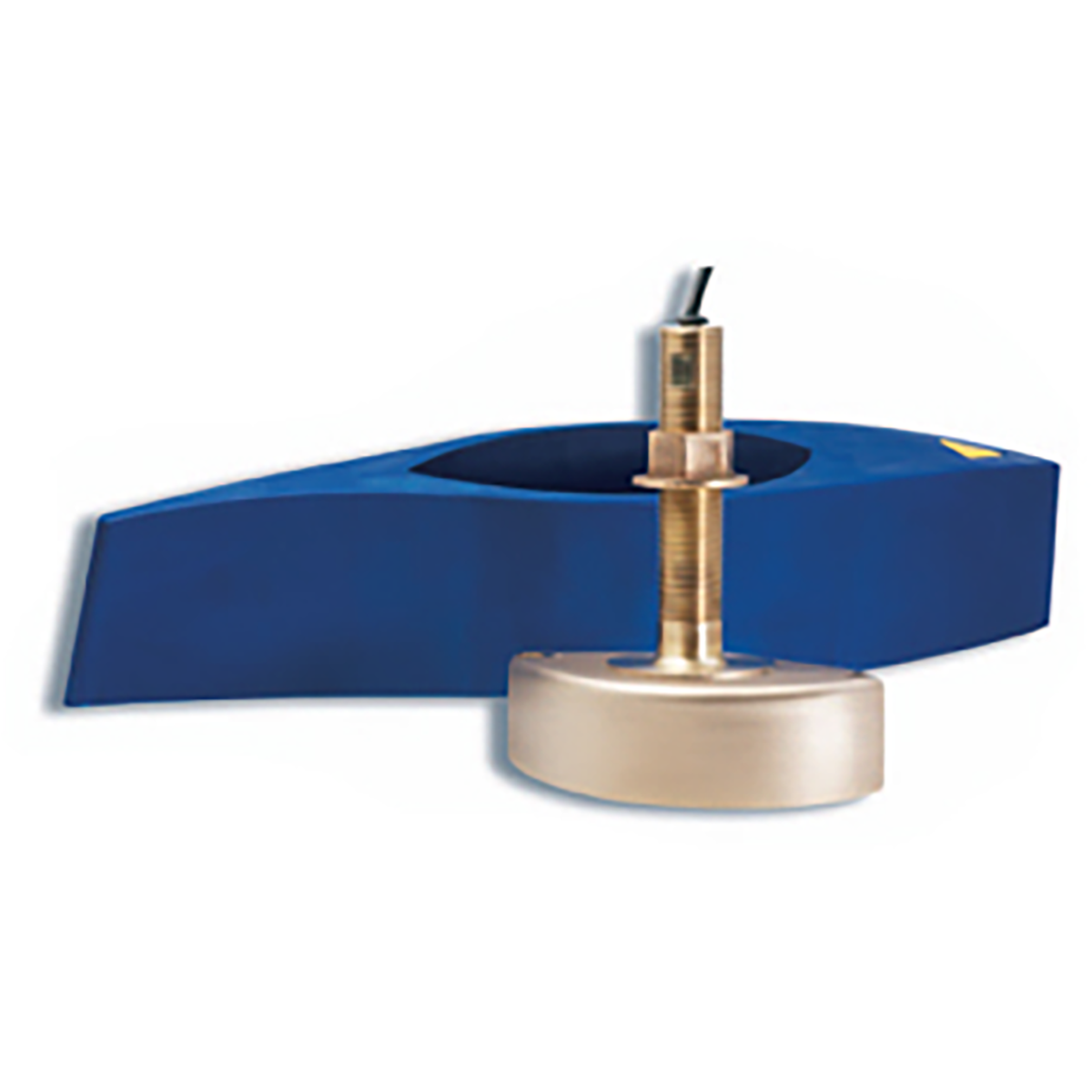

Bronze housing with high-performance fairing for optimal performance at higher speeds
Also available as transom (TM275LHW) and pocket/keel (PM275LHW) mounts
Specifications
Weight 7.3 kg (16 lb.)
Recommended Boat Length 8 m (25′) and above
Hull Material Fiberglass or wood
Hull Deadrise Up to 20° with fairing
Acoustic Window Urethane
Hole Diameter 33 mm or 1-5/16″
Includes High-performance fairing and mounting hardware
Transducer Element Eight internal broadband ceramic assemblies
