Transdutor de Casco Navico Airmar XSonic B150M 20 Deg

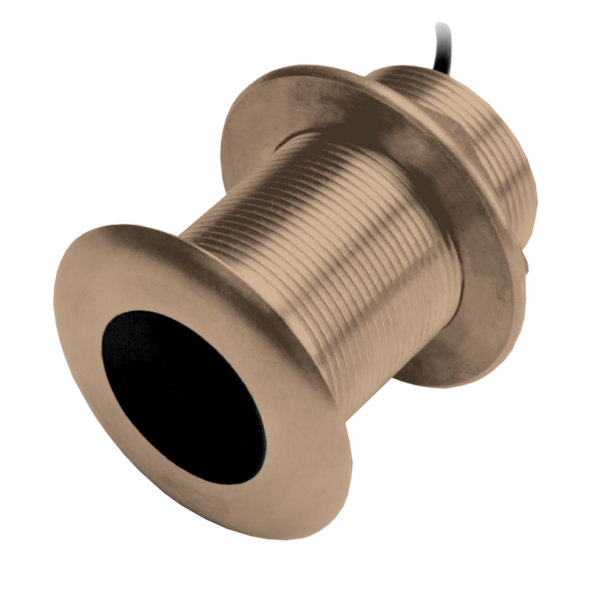

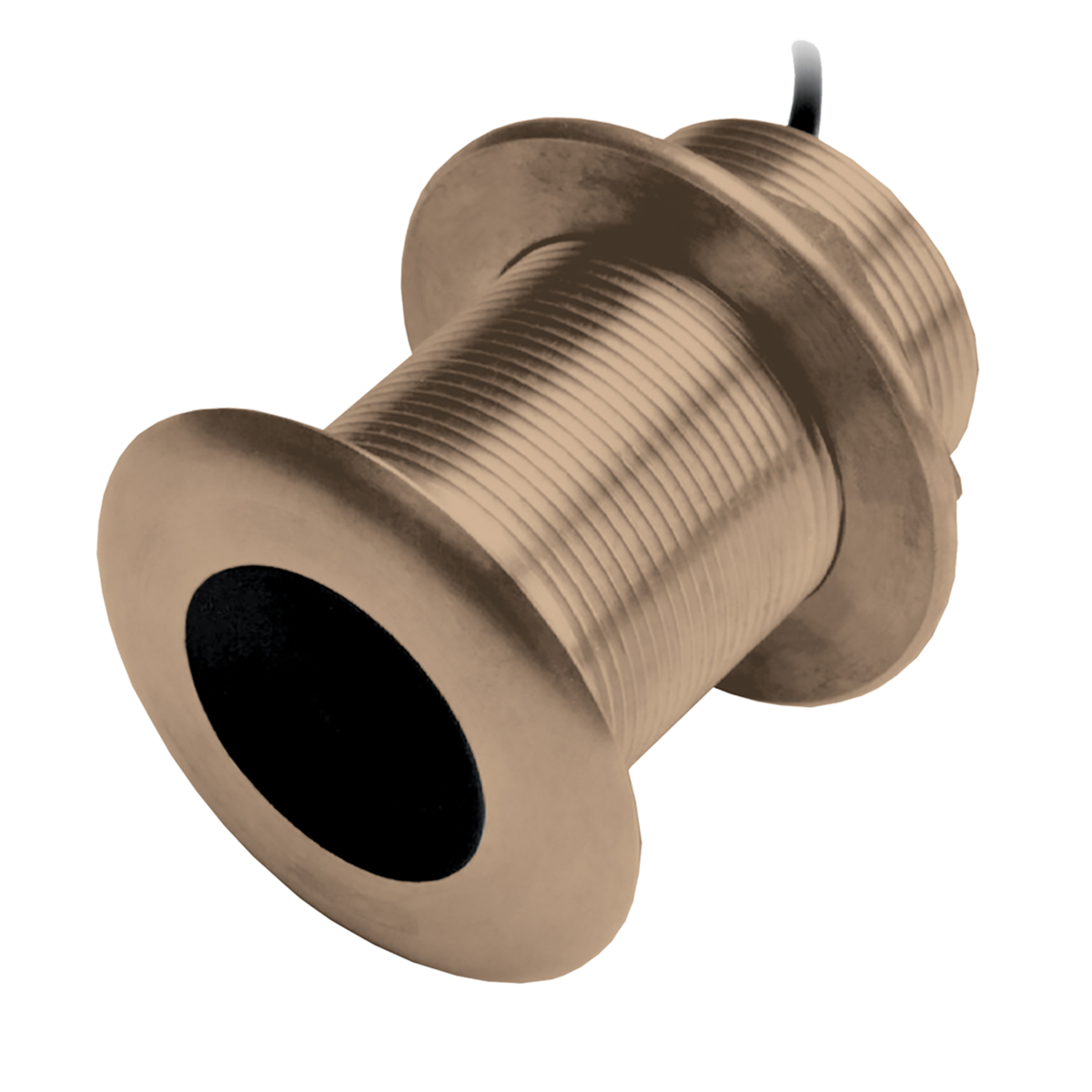

The B150M is a bronze, thru-hull CHIRP transducer, ideal for sportfishing and commercial vessels up to 8m (25ft) in length.This single-channel transducer offers Medium CHIRP for a balance between the great depth penetration of Low CHIRP, and the superior target resolution of High CHIRP.

Ideal for inshore or coastal fishing in shallow to medium depths

CHIRPs from 95-155kHz to provide 60kHz of total bandwidth from one transducer

Black 9 pin connector

Cable length 10 m (33.0 ft)

Physical

Dimensions (W x H x D) 75 (d) x 94 mm (2.9 x 3.7″)

Weight 1.4 kg (3lb)

Radar

Frequencies 95-155 kHz, 83 kHz fixed

Max Depth 200m (650 ft)depending on sonar
