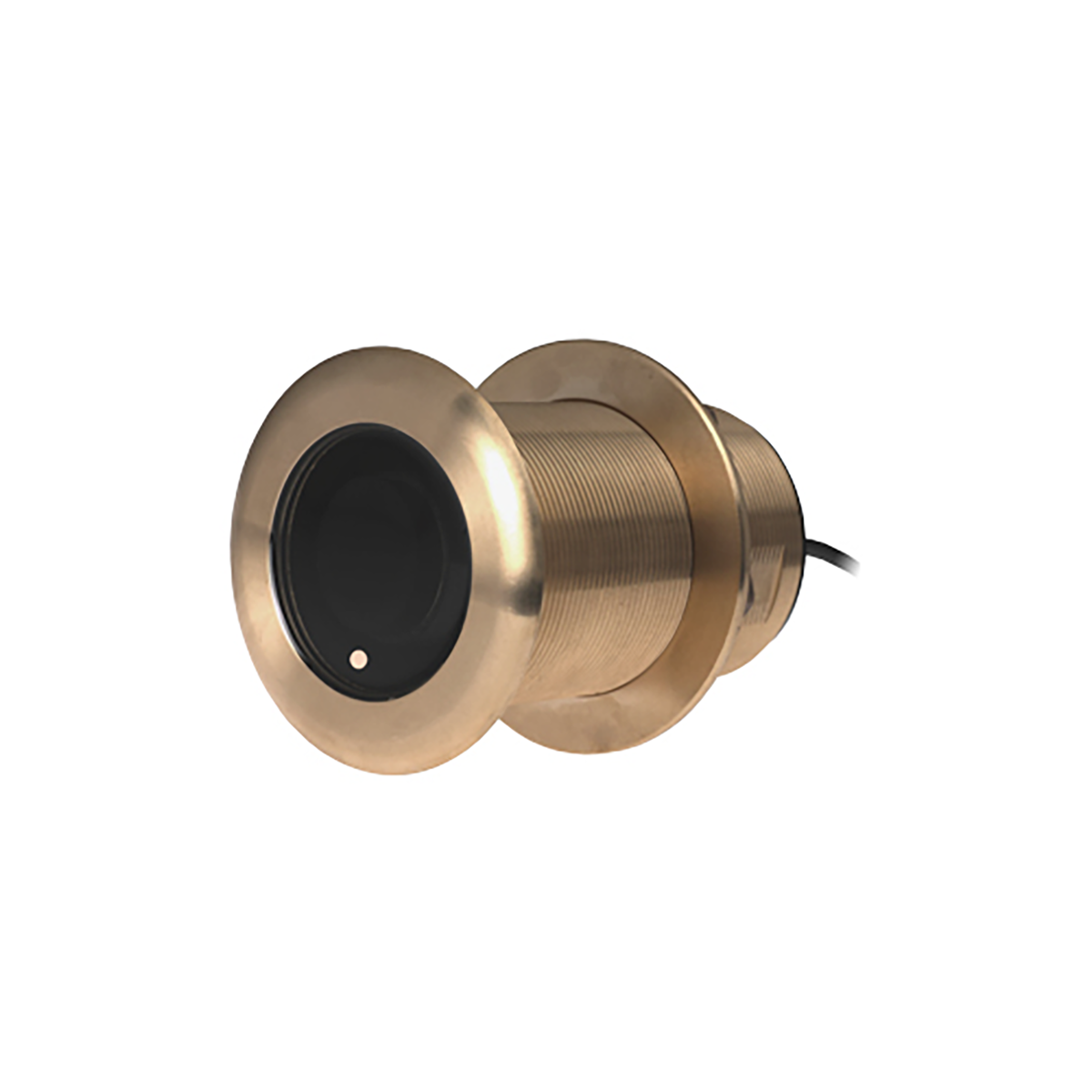

The B150M delivers a great combination of shallow and deep-water performance. Operating at a frequency range of 95 to 155 kHz, this transducer reveals fish in shallow waters and deeper depths out to 183 m (600′) with ultra-clear target resolution.
Tilted Element™ transducers have the ceramic element fixed at a 20°, 12° or 0° angle within the housing. The transducer is installed almost flush to the hull. The tilt of the element corrects for the hull deadrise by orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.
Features
Depth and fast-response water-temperature sensor
300 W with depth performance to 183 m (600′)
Medium frequency: 95 to 155 kHz
26° to 17° beamwidths put more energy on targets for great target separation
60 kHz of total bandwidth from one transducer ideal for inshore or coastal fishing
Narrow beam angles are perfect for detecting fish holding close to structures and suspended fish
Ideal for freshwater, inshore or coastal fishing in shallow to medium depths
Low-profile, thru-hull housing provides good resolution at speed when installed properly
Bronze housing for use on stepped, planing or displacement hull
Also available in a transom-mount (TM150M)
Specifications
Weight 1.4 kg (3 lb.)
Recommended Boat Length Up to 8 m (25′)
Hull Material Fiberglass or wood
Hull Deadrise 0-7°
Acoustic Window Urethane
Hole Diameter 51 mm or 2″
Transducer Element One internal broadband ceramic assembly
