GPS 4-Ways
With the integrated GPS receiver the Link-9 has four ways to ensure you have a GPS fix in the event of an emergency – built-in antenna, SMA connector for GPS-500 antenna, NMEA 0183 for chartplotter GPS and NMEA 2000® for network antenna connection.
Built-in AIS
A dual-channel AIS receiver monitors the position of nearby AIS-equipped vessels, helping you to avoid collisions in crowded harbours and waterways. AIS information can be viewed on the Link-9’s built-in screen, or overlaid on your chart or radar screen through a compatible multifunction display.
Remote Mountable Fist Mic
The Link-9’s removable fist mic can be connected to the front or rear of the radio – optional extension cable allows the radio and mic to be mounted separately. This offers a simple and cost-effective solution for any mounting location, with no cable clutter.

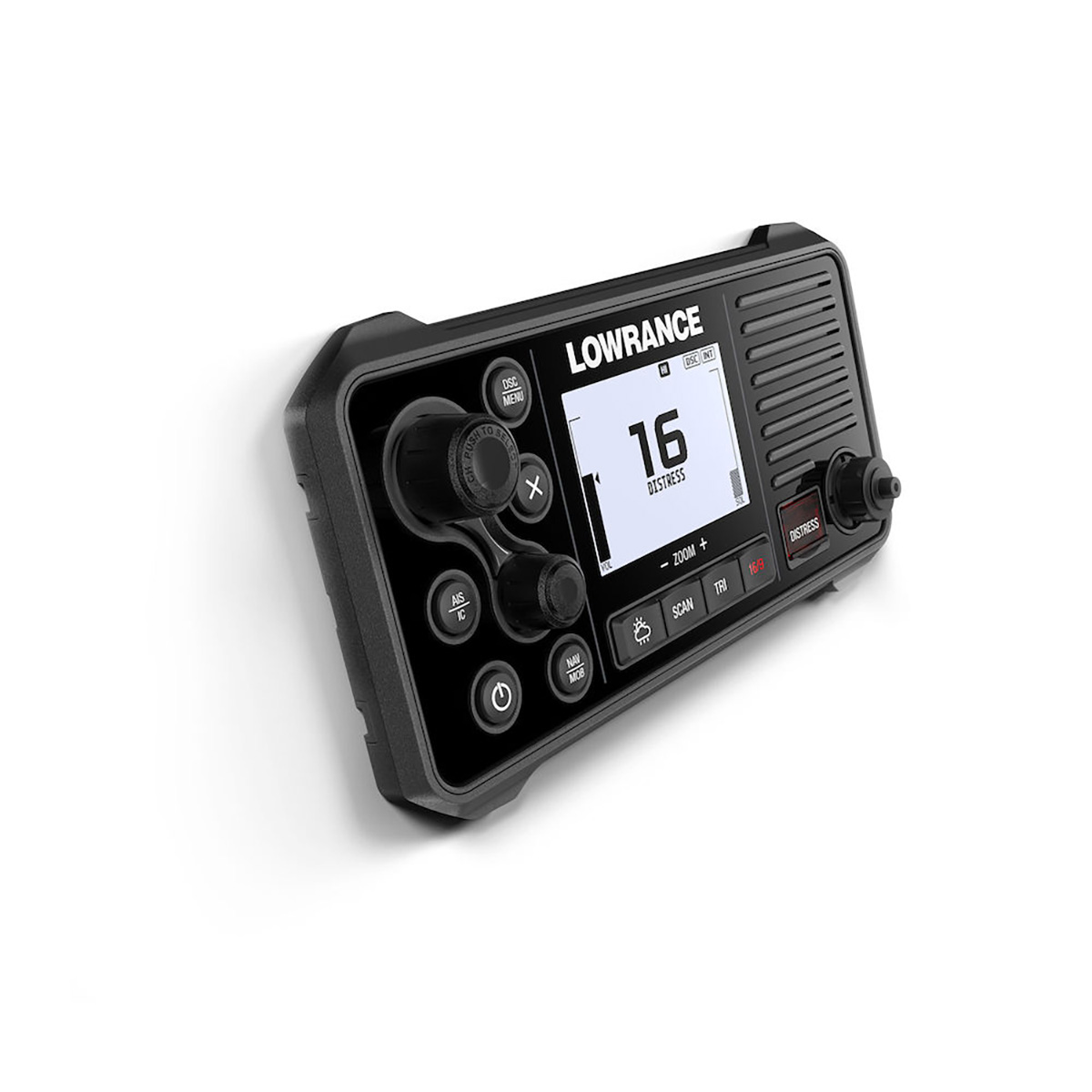

Easier Front-Mount Installation
Link-9 features easily removable top and bottom bezels which reveal mounting holes allowing the same style of mounting from the front that is featured on Lowrance MFDs.
Navigation Mode
Press the NAV button on the Link-9 to turn it into a navigational instrument displaying your Speed and Course. Link-9 also contains a Man Overboard (MOB) function, hold down the NAV/MOB button to drop a waypoint on your current location and the Link-9 will enter MOB mode to show you how far away you are and where you need to steer to get back to the person in the water. The MOB waypoint is also transmitted over NMEA 2000 to the rest of your network.
Class D DSC fixed mount VHF transceiver
Internal GPS Antenna
Six-button, backlit fist mic with optional remote mounting
Built-in dual-channel AIS receiver with AIS plot functionality
New front mountable mechanical design for easy installation
Seamless integration with a wider Lowrance system through NMEA 2000® and 0183
Enviromental
Temperature range -15 to +55°C (+5 to +131°F)
Waterproof IPX7
Power
Normal Working Voltage +13.6 V DC
Minimum operating Voltage ≤10 V DC
Low battery detect Voltage 10.5 ± 0.5 V DC
Over Voltage Protection >15.8 ± 0.5 V DC
Hailer Audio Power Out 30 W
Current Drain RX Max Audio Power ≤1.5 A
Current Drain Stand-By RX ≤0.45 A
Current Drain At 12V DC : Hi Power TX ≤6 A
Current Drain At 12V DC : Lo Power TX ≤1.5 A
General
Frequency Range: Transmit 156.025～157.425 MHz
Frequency Range: Receive 156.050～163.275 MHz
Channels INT / US / CAN / EU
Oscillate Mode PLL
Modulation FM(16KOG3E) DSC(16K0G2B)
Channel Spacing 25 KHz
Frequency Stability ±5 PPM
Digital Selectivity Calling (DSC) Class D
LCD Display FSTN 256×160 Pixels
AIS Max Targets 150
RECEIVER
Intermediate Frequency : 1st 38.85/21.7 MHz
Intermediate Frequency : 2nd 450 KHz
Sensitivity : 12dB SINAD ≤-6 dBuV(EMF)
Squelch Sensitivity: at tight ≤ 6 dBuV(EMF)
Spurious Response Rejection Ratio ≥70 dB
Adjacent Channel Selectivity ≥70 dB
Intermodulation Response ≥68 dB
S/N at 3KHz Dev. ≥40 dB
Audio Output Power At THD 10% ≥2.5 W
Audio Distortion ≤10 %
Audio Response +1 to -3dB of 6dB/octave from 300hz to 3kHz
Current Drain Max Audio Power ≤1.5 A
Current Drain Stand-By ≤0.45 A
2ND RX Sensitivity For 12dB SINAD ≤ 0 dBuV(EMF)
2ND RX bit error ratio@-107dBm ≤ 10-2
TRANSMITTER
Frequency error ≤±1.5KHz KHz
RF Power : Hi 23 ± 2 W
RF Power : Lo 0.8 ± 0.2 W
Maximum Deviation ≤± 5 KHz
S/N at 3KHz Dev. ≥40 dB
Modulation Distortion ±3KHz ≤10 %
Audio Response at 1KHz Dev. +1 to -3dB of 6dB/octave from 300hz to 3KHz dB
Spurious/Harmonic Emissions: Hi/LO ≤0.25 uW
Modulation Sensitivity ≤15 mV
DSC TX deviation at 1.3K 2.6±0.26 KHz
DSC TX deviation at 2.1K 4.2±0.42 KHz
ATIS TX deviation at 1.3 KHz 1.3±0.13 KHz
ATIS TX deviation at 2.1 KHz 2.1±0.21 KHz
Large screen with intuitive user interface
25 W / 1 W transmission power
Extra large, high resolution LCD display
MOB feature
Track Your Buddy option
Dual Watch / tri watch and all scan functions
PA/Hailer horn output with Listen Back Feature
10 weather channel
20 user programmable names with MMSI
Fully waterproof
New Industrial Design to align with style of Lowrance MFD’s
