Pack Piloto Automático Motor de Popa Hidráulico Navico NAC-1

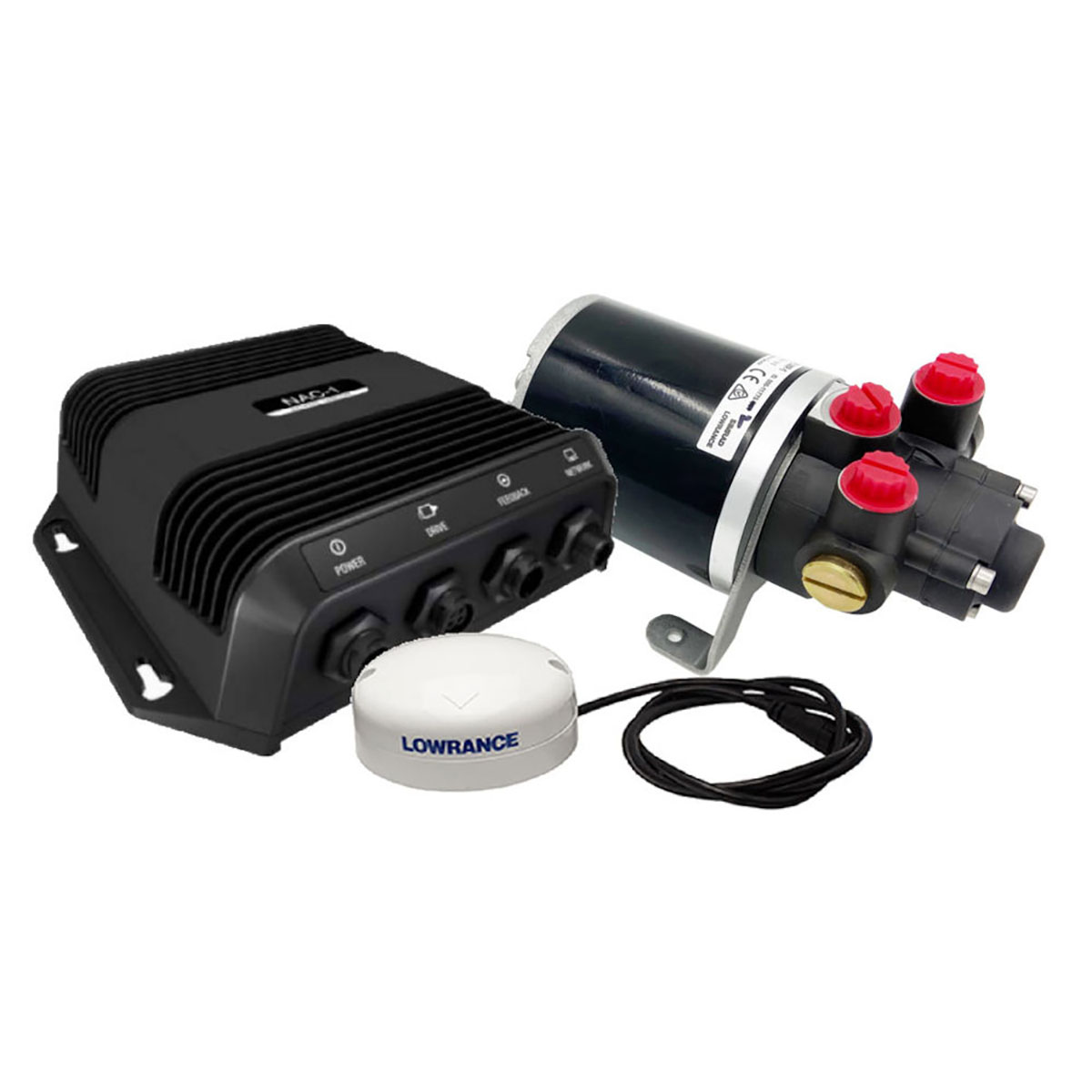

Outboard Pilot Hydraulic Pack: Includes Point-1 AP Heading and GPS Sensor, NAC-1 Autopilot Computer, PUMP-1 MKII – 0.8L reversible hydraulic pump, hydraulic fitting kit, Standby-Auto button and Micro-C network components.



Easy to Install, available for both Hydraulic and Cable steer systems



Dash-mount button for one-touch Auto/Standby activation



Steer to Heading, Course or Route



Automatic Turn Patters



NAC-1 Plug & Socket connectors – no screw terminals or wire stripping necessary



High efficiency, super-quiet 0.8L hydraulic gear pump (Pump-1 MKII)



Add a second Helm station to a boat using the MFD Power steer commands – no need for additional hydraulics + steering wheel



Mechanical/Environmental



Casing Per NEP -2

Water Ingress IPX5

Weight TBC

Overall Dimensions Width: 7.1 in 180 mm, Height: 2.2 in 57 mm



Electrical



Supply Voltag 12v only

Max Drive output 8A continuous, 16 Amp peak



Interfaces



Network 1xMicroC

Feedback Variable voltage from HELM -1 drive unit

Drive output To PUMP-1 or HELM-1

Power supply 12V
