Interface NMEA 2000 p/ Motors Yamaha CBL RD Navico

Connects to Yamaha engines without Yamaha CommandLink Plus system.



-2006 & newer: F50, T50, F60, T60, F75, F90, F115, LF115, F150, LF150, F200, LF200, F225, F225, F250, LF250.



-2006 & newer: Z150, LZ150, VZ150, Z175, Z200, LZ200, VZ225, Z250, LZ250, VZ250, Z300, LZ300, VZ300.



Outputs:



Yamaha| 4-stroke 50-250| 2-stroke HDPI 150-350



RPM| Yes| Yes



Alternator Voltage| Yes| Yes



Engine Hours| Yes| Yes



Engine Temperature| Yes| Yes



Fuel Pressure| Yes| Yes



Fuel Rate| Yes| Yes



Oil Pressure| Yes| Yes



Trim *| Yes| Yes



Water Pressure| Yes| Yes



*Digital trim must be connected by a Yamaha dealer.

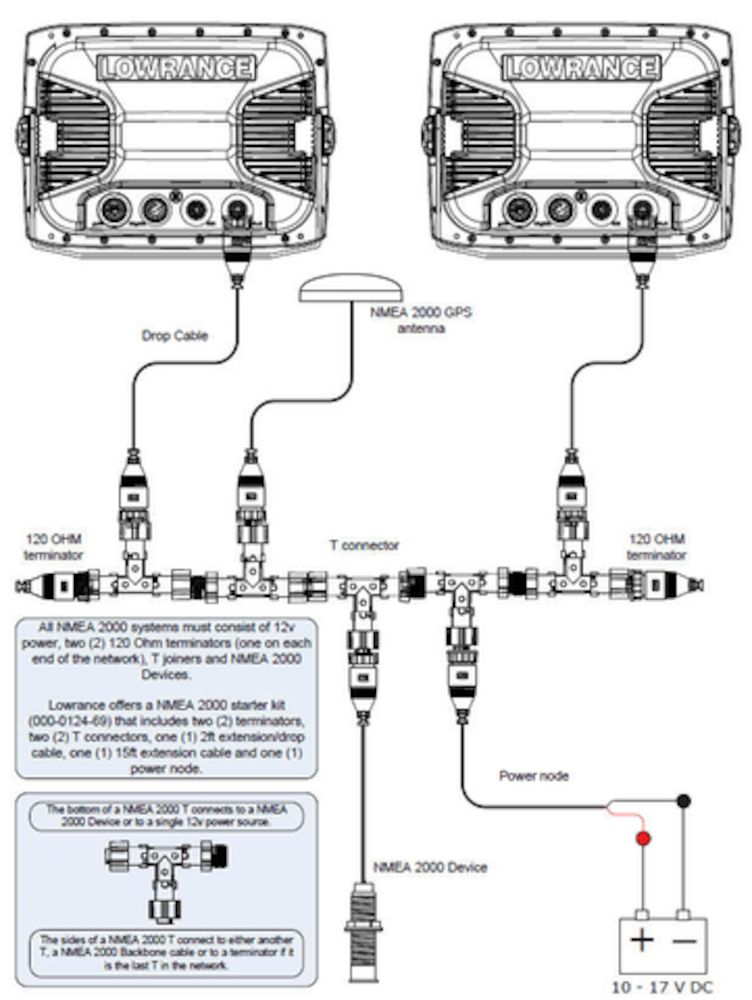

*Requires NMEA 2000 network. Kit includes T-connector to connect to a new or existing NMEA 2000 network. Add NMEA 2000 starter kit, part number 000-0124-69, if a network is not already installed.
