New Lowrance sonar

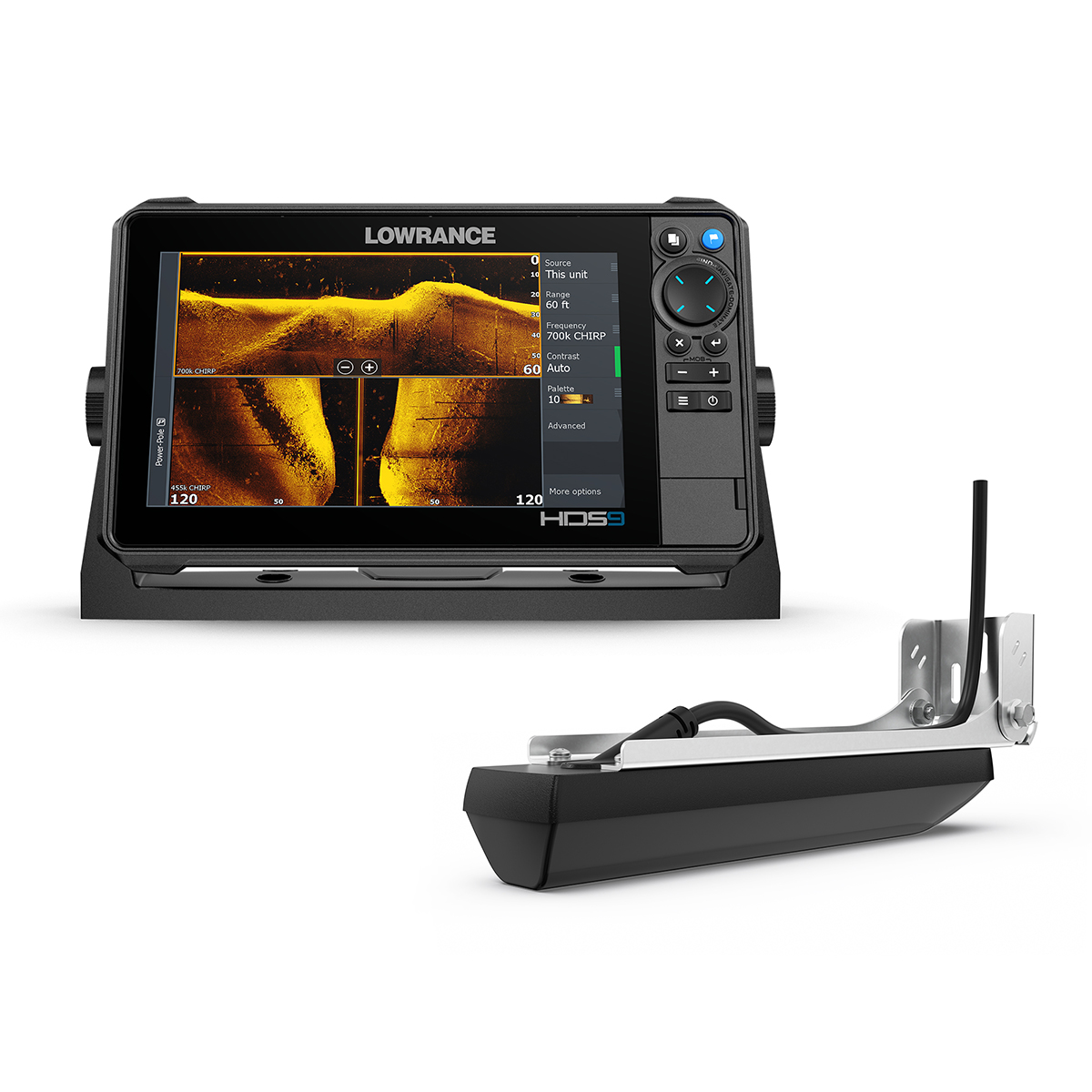

See more and catch more with the new HDS PRO, giving you the clearest and most-detailed views with new, higher-resolution ActiveTarget® 2 Live Sonar and new, ultra high-definition ActiveImaging™ HD.
Our clearest sonar ever, Active Imaging HD delivers high-definition views of Lowrance CHIRP sonar, SideScan and DownScan Imaging™. FishReveal™ has also been expanded to be available on SideScan* and DownScan, making fish easier to identify to the sides and beneath the boat. (*Requires S3100 Module)

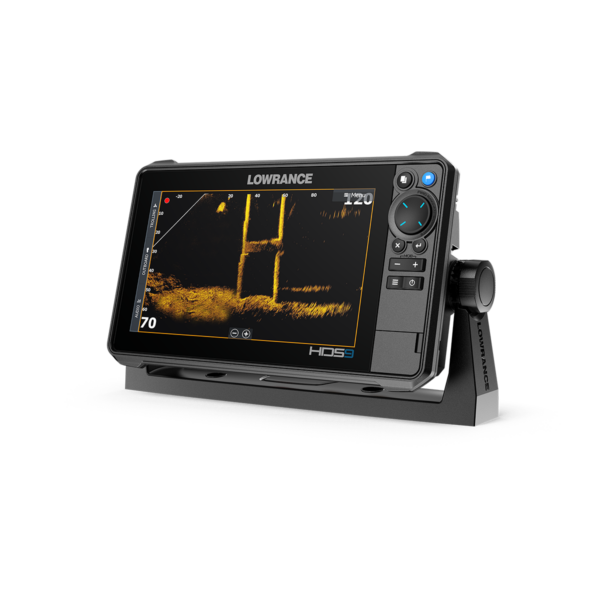

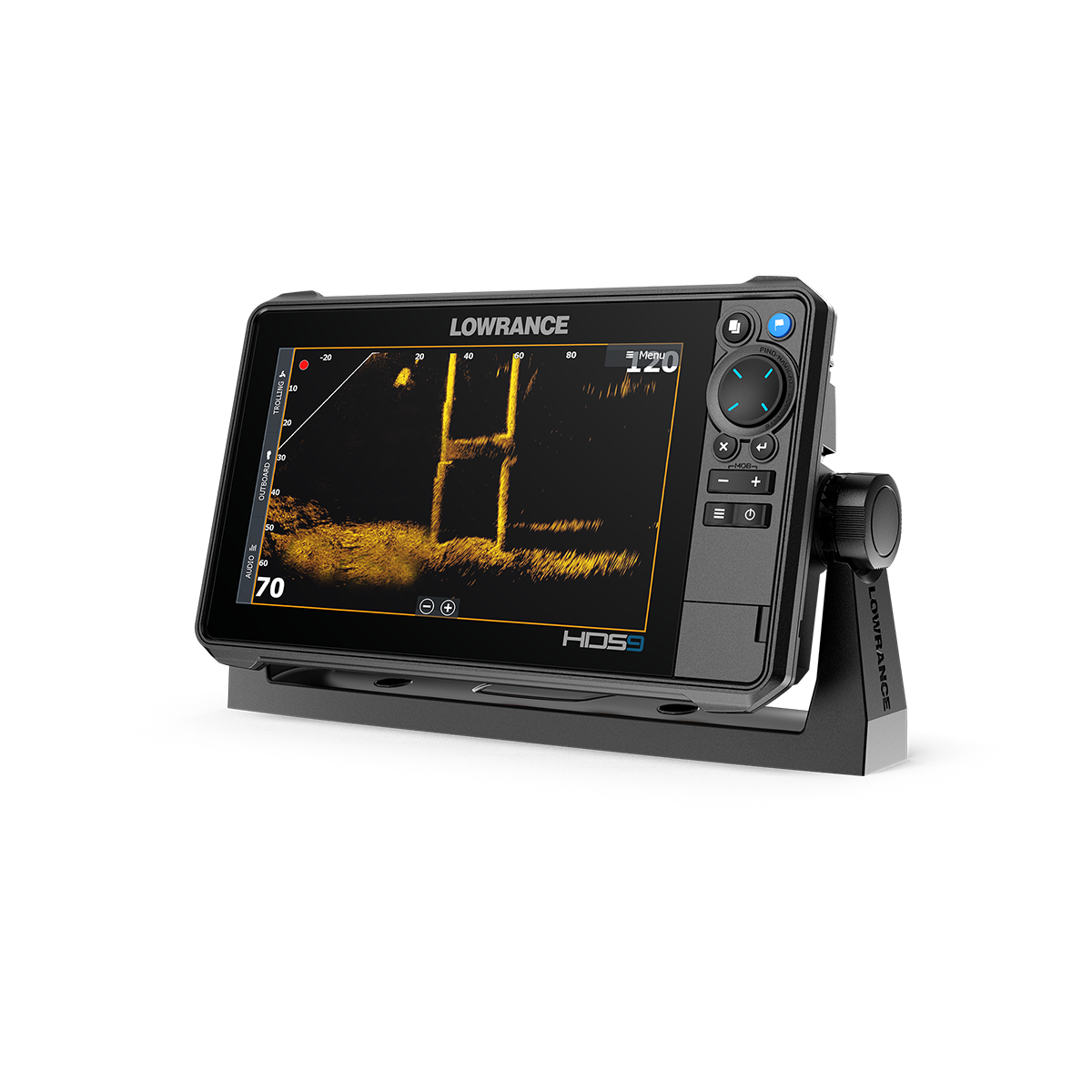

ActiveTarget 2 Live Sonar provides wider, higher-resolution views of fish movement and structure. It also supports plug-and-play installation of two ActiveTarget transducers, making it possible to watch multiple views simultaneously, and to widen Front and Scout modes for better bait tracking.
The ultimate clarity
The better your view, the better your fishing. From the high-definition touchscreen display to the high-level clarity of the newly-enhanced Lowrance sonar, HDS Pro delivers a full range of meaningful underwater views that will take your fishing experience from good to great.

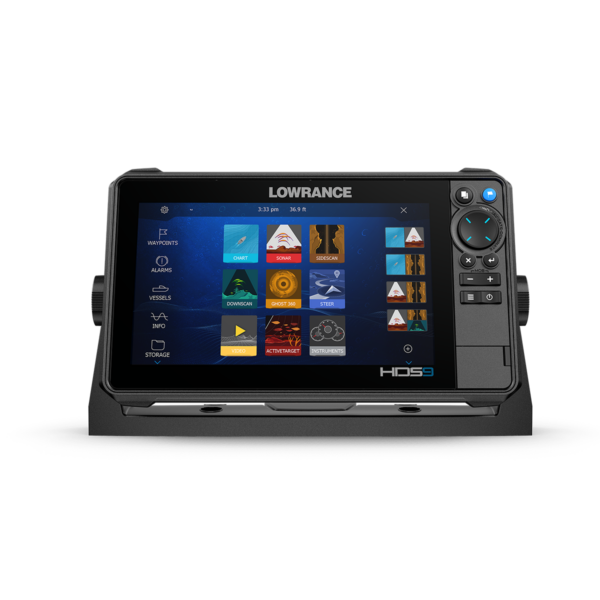

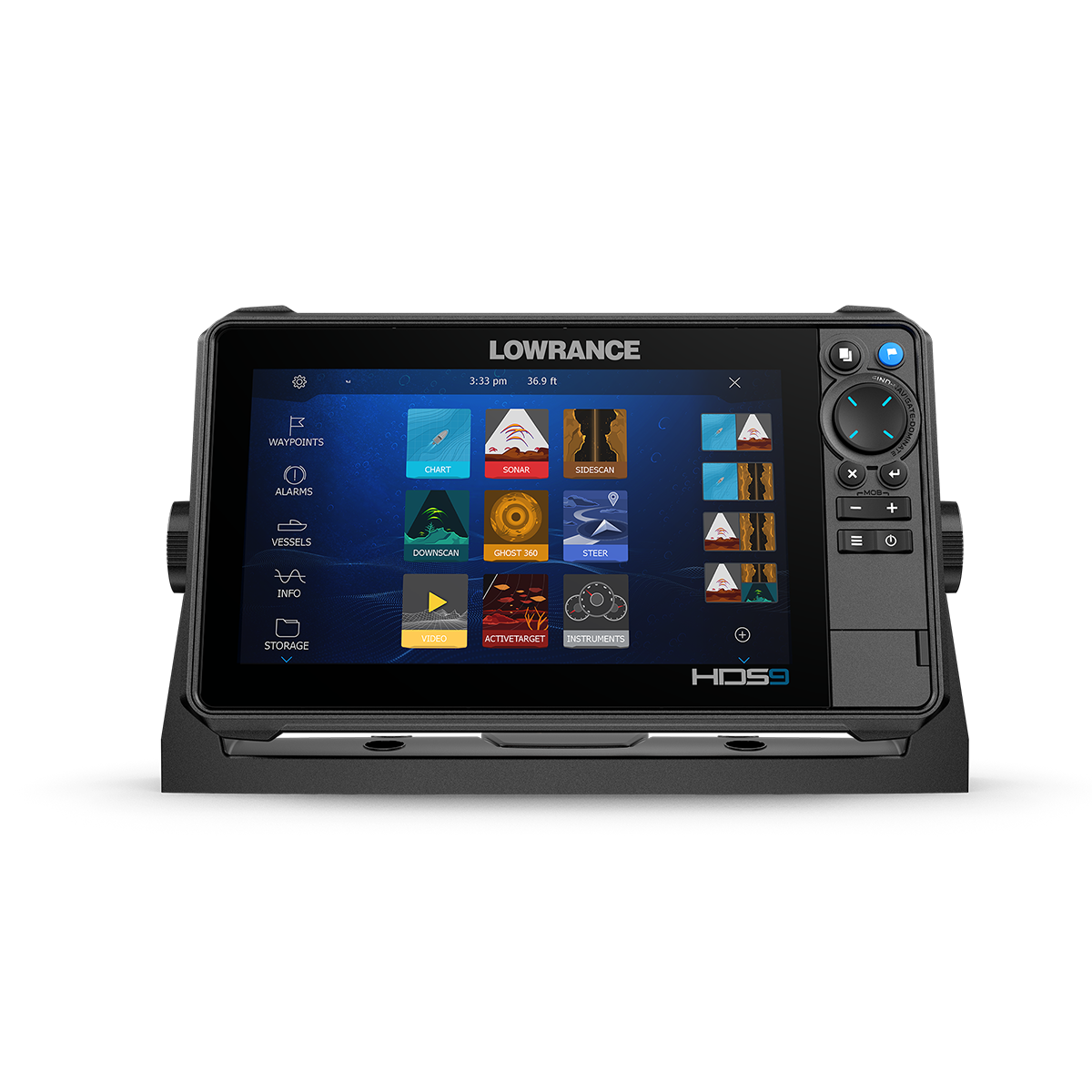

The SolarMAX™ HD touchscreen provides stunning images of fish, structure and chart details that are easy to see from any angle, in direct sunlight and through polarized lenses – a real difference maker on the water. See unmatched clarity on-screen with Lowrance’s superior, high-resolution Active Imaging™ HD sonar and ActiveTarget® 2 Live Sonar technologies.
All the chart details
Powerful, intuitive charts are key to any fishing system, helping anglers find the best fishing spots and navigate there safely. HDS Pro comes pre-loaded with C-MAP® charts, and the option to upgrade to either C-MAP® DISCOVER™ or REVEAL™, so you can spend more time catching fish and less time finding them. C-MAP charts bring great routes, social layers, and even real-time mapping with the powerful Genesis® Live. HDS PRO is also compatible with Navionics and other chart suppliers.
Complete bow to stern boat control
HDS PRO gives you full bow-to-stern networking and control of the Ultimate Fishing System.
With HDS PRO at the heart of your fishing system, it’s easy to customize your boat to fit the way you fish with your choice of fish-finding, navigation, network and entertainment options. HDS PRO offers support for the complete range of top fish-finding technologies – from ActiveTarget® 2 Live Sonar and Active Imaging™ HD to touchscreen control of Power-Pole® Anchors, Ghost® Trolling Motor and more.
Expand your system — taking advantage of radar, autopilot and NMEA 2000® compatibility – and add SiriusXM® Weather/Audio to monitor changing weather conditions and to listen to your favorite tunes.
More options
The expanded options and capabilities of HDS PRO give you more ways to customize your boat to better fit your fishing needs. Beyond the 9, 10, 12 and 16-inch screen sizes, HDS PRO can also be expanded to deliver additional views and features. Simply add an S3100 sonar module and Active Imaging Transducer to enable the new FishReveal™ SideScan view, making it easier to identify fish to the sides of the boat. Anglers can also add a second ActiveTarget® Transducer to better target fish by viewing multiple ActiveTarget 2 live sonar displays at the same time. With plug-and-play installation, expanding your fishing has never been easier.
Autopilot
Manouevres / Turn Patterns CourseHeadingWaypointPower SteerU-TurnC-TurnSpiralZigzagSquareLazy-S
Steering Modes CourseHeadingWaypointPower Steer

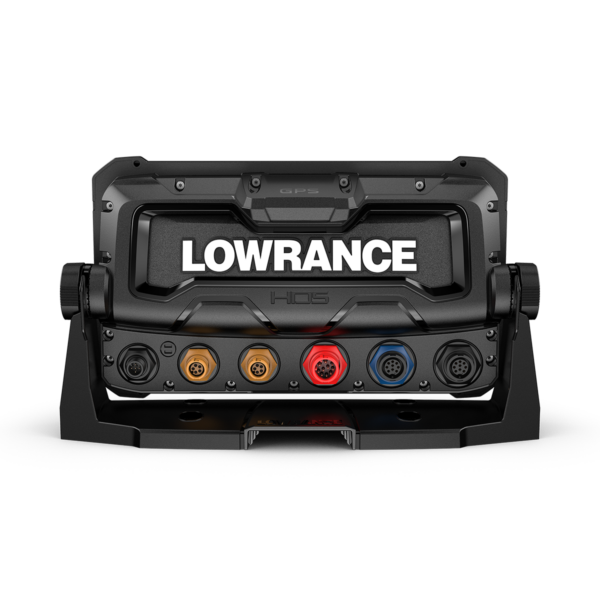

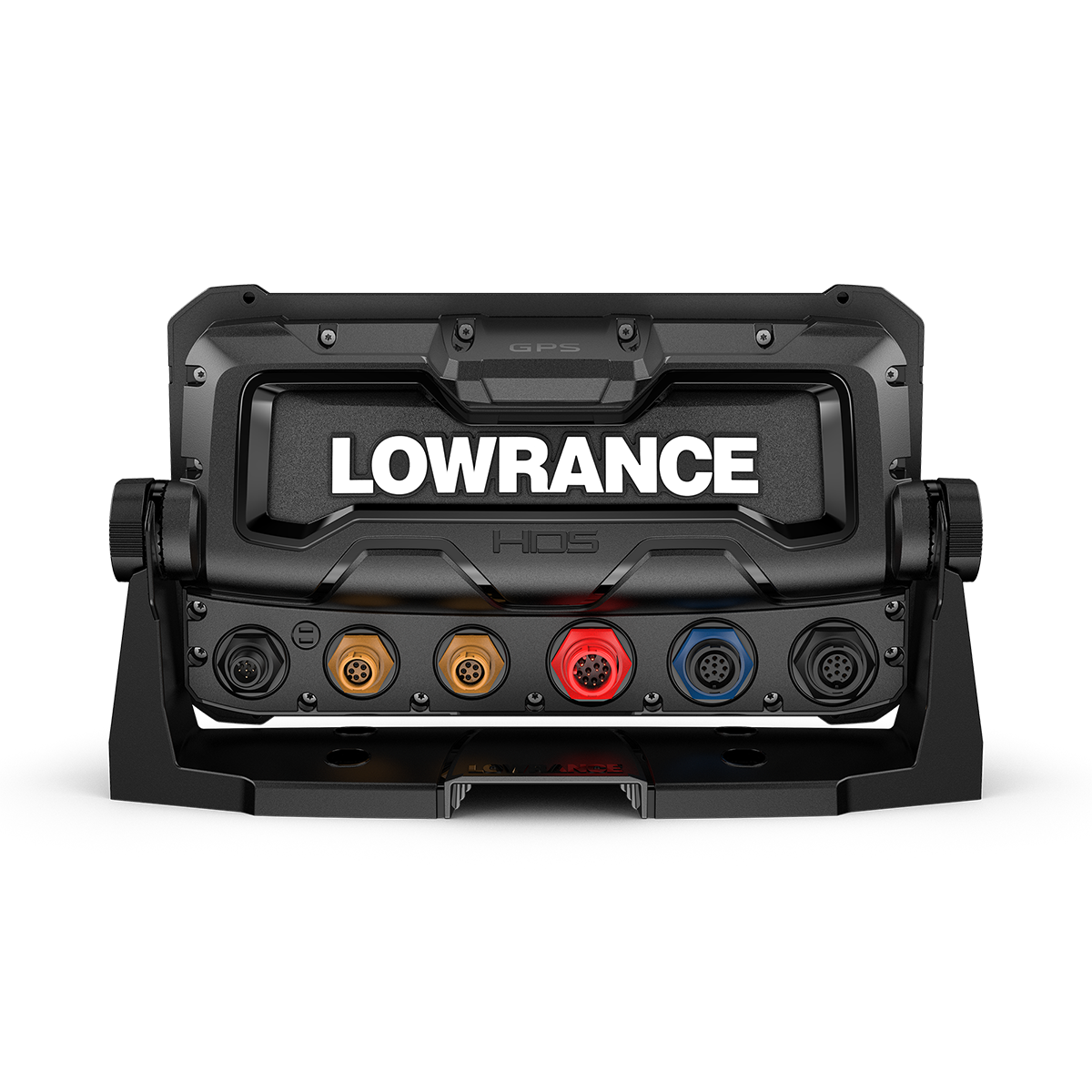

Connectivity
NMEA 0183 Sentences supported TX / RX – GPSReceive GGA GLL GSA GSV VTG ZDATransmit GGA GLL GSA GSV VTG ZDA GLCTX / RX – NavigationReceive RMCTransmit AAM APB BOD BWC BWR RMC RMB XTE XDRTX / RX – SonarReceive DBT DPT MTW VLW VHMTransmit DBT DPT MTW VLW VHMTX / RX – CompassReceive HDG HDT HDMTransmit HDGTX / RX – WindReceive MWV MWDTransmit MWV MWDTX / RX – AIS / DSC*Receive DSC DSE VDM*AIS sentences are not bridged to or from NMEA 2000.
Bluetooth Integrated Bluetooth 4.0 with support for Bluetooth Classic
Ethernet 1x 100 Mbit, 6 max MFD’s on a network
NMEA 0183 1x RS422 port Baud rates: 1200, 2400, 4800 (Default), 9600, 19200, 38400, 57600, 115200
NMEA 2000 1x Micro-C
PC Connectivity None
Video Output: NoInput: Composite video RCA – singlechannel via optional adaptor
WiFi Internal 802.11b/g/n and Compatible with WiFi-1 Module
Display
Backlight Color Pure White LED
Resolution 1280×720
Screen Brightness >1200 Nits
Size and Type 9″ (228mm)SolarMAX HD (TM) IPStechnologyMulti-touch, P-CAP
Viewing Angles 80° top/bottom, 80° left/right
Electrical
Power Consumption, max. 2.9A @ 13.8VDC with Full Backlight, Sonar on
Power Consumption, min. 2.0A @ 13VDC withwith Full Backlight, Sonar on
Power Consumption, typical 2.0A @ 13VDC withwith Full Backlight, Sonar on
Recommended Fuse Rating 3A
Supply Voltage 12 v DC (10.8-17VDC)
Humidity IEC 60945Damp Heat 150°F (66°C) at 95% Relative Humidity (48 hrs)
Environment
Operating Temperature Range 5°F to 131°F (-15°C to 55°C )
Shock and Vibration 100,000 cycles of 20 G
Storage Temperature Range 4°F to 140°F (-20°C to 60°C )
Waterproof rating IPX7 with card door closed
GPS
Correction DGPS, WAAS
GPS Receiver Channels 16
Position Accuracy 20m RMS
Time to First Fix 30s
Update rate 10 Hz
MFD
AIS AIS Chart and Radar overlay. Target vessel details.
Autopilot Outboard PilotNAC-1NAC-2Ghost Trolling MotorMotorGuide Xi5/Xi3 Trolling Motor **requires Motorguide PinPoint Gateway
Cartography included C-MAP World Background (ROW models)Navionics basemap (AMER and ROW models)
Cartography supported C-MAP RevealC-MAP DiscoverC-MAP Reveal XC-MAP Discover XC-MAP (MAX N, MAX N+)C-MAP GenesisC-MAP Precision Contour HD (AMER ONLY)Navionics (Gold, NAV+ Platinum+)Insight (Pro and HD)Lowrance Regional Mapping Partners
Digital Switching CzoneNaviop
External Storage 2 micro SD cards up to 32GB
GPS 10 Hz GPS/GLONASS WAAS/EGNOS/MSAS
Internal Storage 8.0 GB Internal
Multimedia SonicHubSonicHub2FusionLink productsany NMEA 2000 compliant Marine Aduio products
Radar (inc. compatibility) 4G (Broadband)3G (Broadband)Halo20/20+ (Pulse Compression Dome Radar)Halo24 (Pulse Compression Dome Radar)Halo 3’/4’/6′ (Open Array Pulse Compression Radar)
Sonar (inc. compatibility) Integrated: CHIRPBroadbandActive Imaging DownScanActive Imaging SideScanActive Imaging HD DownScanActive Imaging HD SideScanCompatible with:ActiveTargetActiveTarget2S3100 SonarHubStructureScanStructureScanHDStructureScan3DLiveSight (requires PSI-1 module)
Weather SiriusXM via WM-3 (USA only)SiriusXM via WM-4 (USA only)
Waypoints, Routes, Tracks 3000 Waypoints100 Routes100 Trails with up to 10,000 points per trail
Compass Safe Distance – Metric, imperial 12″ (300mm)
Physical
Dimensions (W x H x D) 11.02″ (280 mm) x 6.56″ (166.7 mm) x 3.06″ (77.7 mm)
Mounting Type Gimbal BracketFront Dash Flush MountRear Dash Flush Mount
Weight 3.06 lb (1.39 kg)
Other
Warranty Period 2 Year + 3 additional years ofupgrade optionsTotaling 5 years
Interface Touchscreen:Full Multi-touch touchscreenKeypad:8-way directional keypadZoom +/-ExitEnterMenuWaypointPower/Light
