NAC-2 Autopilot Core Pack

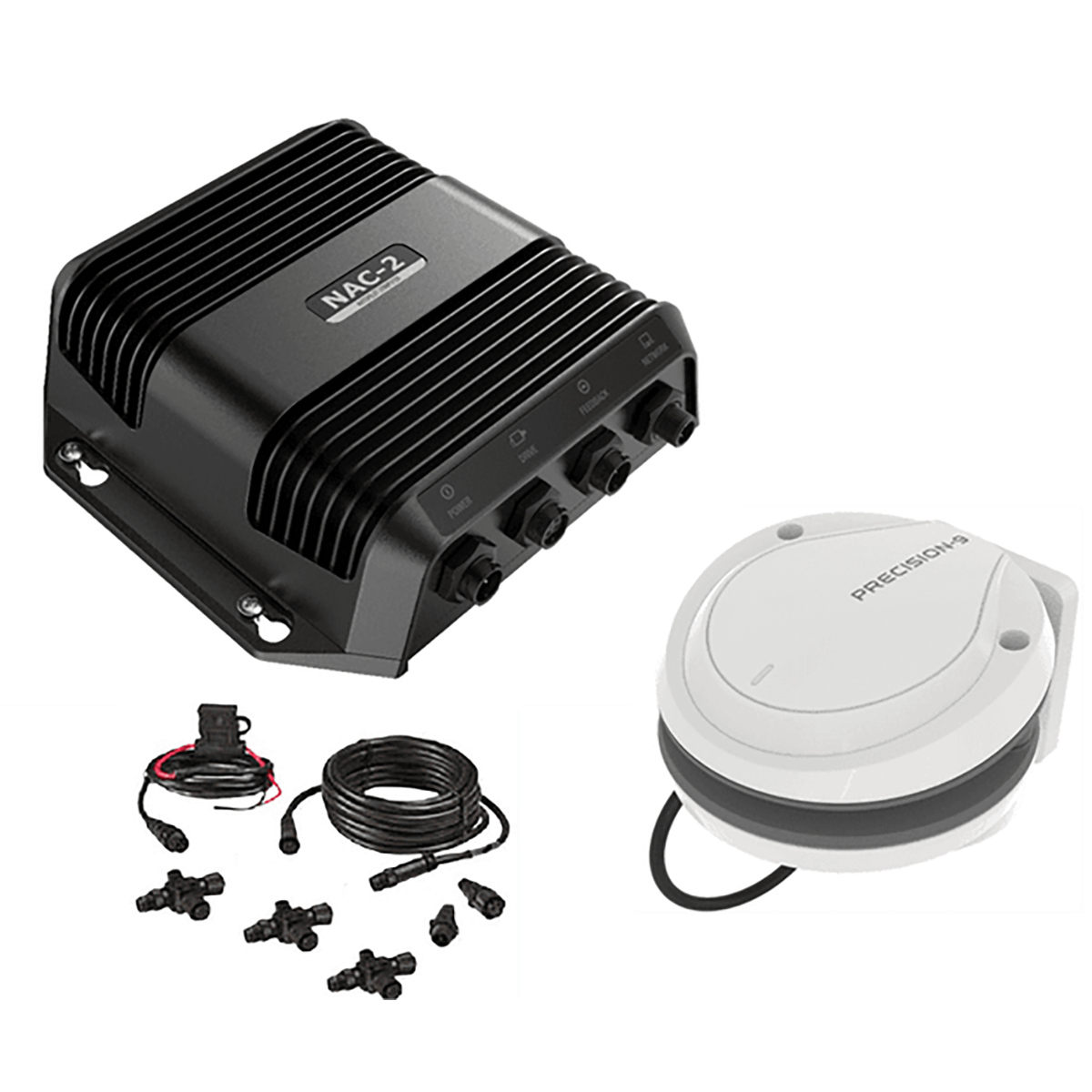

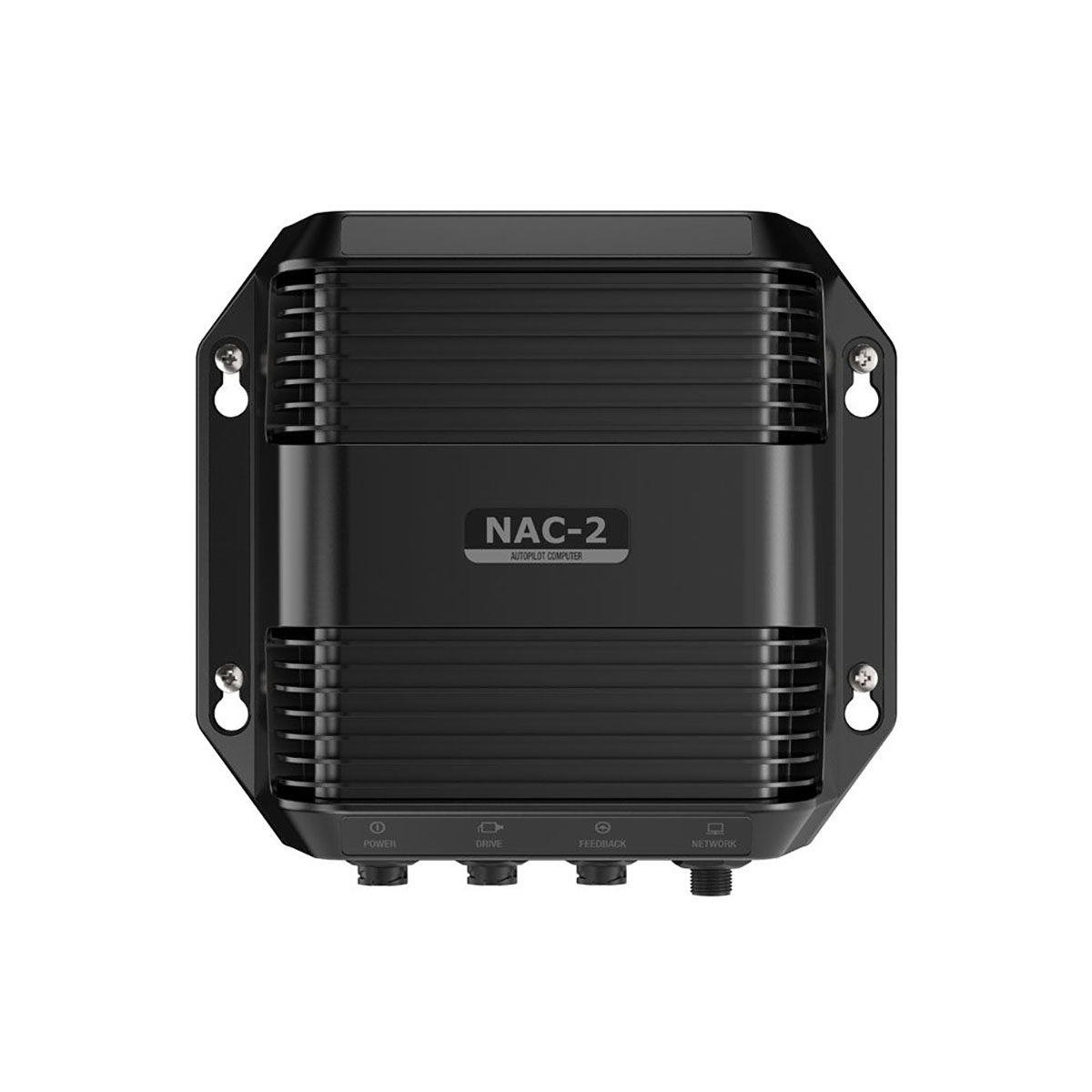

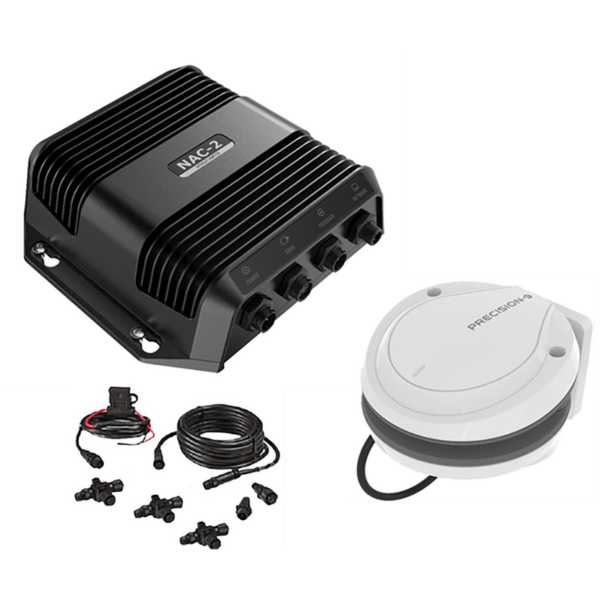

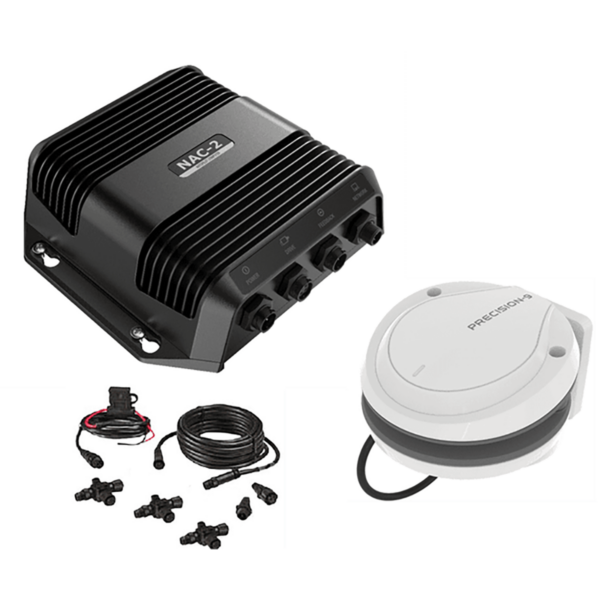

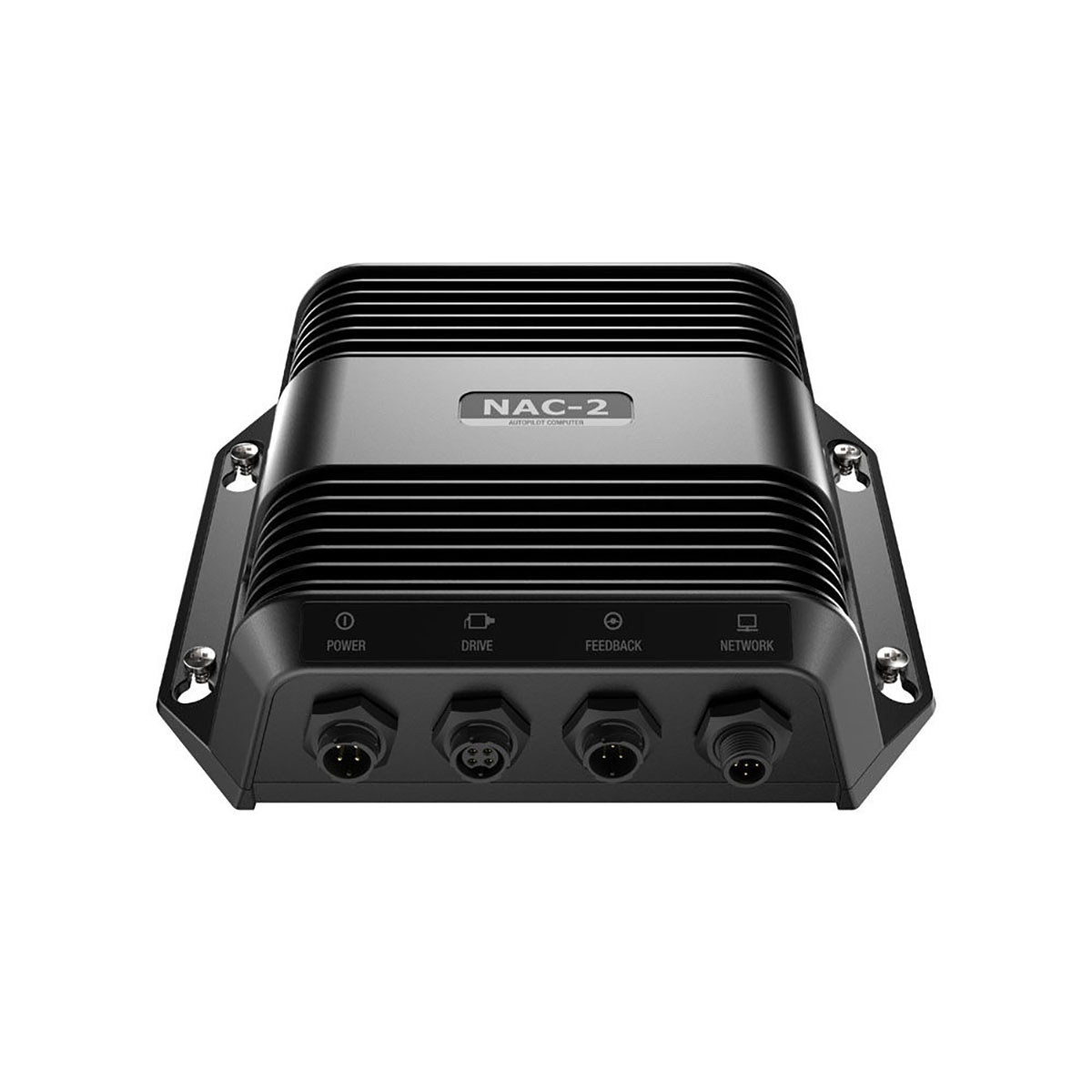

This pack includes the Simrad NAC-2 autopilot computer, Precision-9 solid-state compass, plus all cabling and connectors required to build an NMEA 2000® network backbone or connect your autopilot system to an existing NMEA 2000® network. This pack is recommended for outboard and sterndrive boats up to 10 metres (35 feet) in length, and is suitable for use with low-current drive pumps including the Simrad RPU80, mechanical drives such as the SimrNAC-2 Autopilot Core Pack
This pack includes the Simrad NAC-2 autopilot computer, Precision-9 solid-state compass, plus all cabling and connectors required to build an NMEA 2000® network backbone or connect your autopilot system to an existing NMEA 2000® network. This pack is recommended for outboard and sterndrive boats up to 10 metres (35 feet) in length, and is suitable for use with low-current drive pumps including the Simrad RPU80, mechanical drives such as the Simrad SD10, hydraulic linear drives such as the HLD350, and solenoid valves.
Multiple Control Options
Choose from a range of dedicated autopilot controllers, or control your autopilot from your existing Simrad multifunction display. Install extra autopilot stations, ideal for dual-helm vessels, or add the Simrad WR10 wireless remote for instant steering and autopilot control from anywhere on board.
Easy Installation and Setup
Simrad Virtual Rudder Feedback (VRF) technology eliminates the need to install a mechanical rudder feedback unit aboard outboard and sterndrive (inboard/outboard) boats. VRF technology greatly simplifies autopilot installation, while delivering uncompromising Continuum steering performance. Plug-and-play connectors minimise the need for manual wiring and facilitate easy installation. Industry-standard NMEA 2000® networking offers reliable connectivity to sensors, autopilot controllers, and multifunction displays located anywhere on board. Auto-tuning simplifies setup and ensures optimal steering performance, while automatic compass calibration continuously improves heading accuracy as you travel.
Core autopilot system components – just add a drive unit and controller
Ideal for outboard and I/O boats up to 10 metres (35 feet) in length
Compatible with low -current drive pumps, mechanical drives, hydraulic linear drives, and solenoid valves
Take control with the Simrad AP44 Autopilot Controller, IS42 display and OP12 keypad, or a networked multifunction display
Virtual Rudder Feedback eliminates the need to install a mechanical rudder feedback unit
Easy setup with automatic tuning and compass calibration
Plug-and-play connectors for easy installation
Mechanical/Environmental
Operating temperature -25°C to +55°C (13°F to 131°F)
Protection Splashproof, IPx5
Weight 0.6 kg (1.3 lbs)
Overall Dimensions Width: 7.1 in 180 mm
Height: 2.2 in 57 mm
Electrical
Power supply 9-31.2 V DC
Load 140 mA + drive unit load
Performance Drive: 8 A cont., 16 A for 1 s
Interfaces
Network 1xMicroC (NMEA2000)
Feedback Variable voltage/resistive 0-5V
Drive output To PUMP-1 or HELM-1
Power supply 9-31.2 V DC
Solenoid 12/24V DC, common, load range 10mA to 10A, off current <1mA
Clutch 12/24V DC, min 10mA, max 3A
Precision 9
Dimensions: H: 36 mm (1.42”), W & D: 119 mm (4.69”)
Weight: Module:|165 g (5.8 oz), Bracket:|130 g (4.6 oz)
Supply and interface: 8-16 V via NMEA 2000
Power consumption: 0.4 W
NMEA 2000 Load Equivalence No. (LEN): 1
NMEA 2000 ports (input/output): 1
Calibration: Automatic (User Prompted)
Repeatability: ± 1.0° (or better)
Roll/Pitch range: ± 45°
Heading accuracy: ± 2° after calibration
Dynamic performance: with random excitation of ± 10° at max 1 Hz:|Heading error <2°: with heading step input of 90° at a rate of 10°/s: |Heading error 10 sec. after turn <2°
Environmental protection: IPx7
Compass safe distance: 0.5 m (1.7’)
Temperature range operation: -25 to +65°C (-13 to +149°F)
Temperature range Storage: -30 to +70°C (-22 to +158°F)ad SD10, hydraulic linear drives such as the HLD350, and solenoid valves.
Multiple Control Options
Choose from a range of dedicated autopilot controllers, or control your autopilot from your existing Simrad multifunction display. Install extra autopilot stations, ideal for dual-helm vessels, or add the Simrad WR10 wireless remote for instant steering and autopilot control from anywhere on board.
Easy Installation and Setup
Simrad Virtual Rudder Feedback (VRF) technology eliminates the need to install a mechanical rudder feedback unit aboard outboard and sterndrive (inboard/outboard) boats. VRF technology greatly simplifies autopilot installation, while delivering uncompromising Continuum steering performance. Plug-and-play connectors minimise the need for manual wiring and facilitate easy installation. Industry-standard NMEA 2000® networking offers reliable connectivity to sensors, autopilot controllers, and multifunction displays located anywhere on board. Auto-tuning simplifies setup and ensures optimal steering performance, while automatic compass calibration continuously improves heading accuracy as you travel.
Core autopilot system components – just add a drive unit and controller
Ideal for outboard and I/O boats up to 10 metres (35 feet) in length
Compatible with low -current drive pumps, mechanical drives, hydraulic linear drives, and solenoid valves
Take control with the Simrad AP44 Autopilot Controller, IS42 display and OP12 keypad, or a networked multifunction display
Virtual Rudder Feedback eliminates the need to install a mechanical rudder feedback unit
Easy setup with automatic tuning and compass calibration
Plug-and-play connectors for easy installation
Mechanical/Environmental
Operating temperature -25°C to +55°C (13°F to 131°F)
Protection Splashproof, IPx5
Weight 0.6 kg (1.3 lbs)
Overall Dimensions Width: 7.1 in 180 mm
Height: 2.2 in 57 mm
Electrical
Power supply 9-31.2 V DC
Load 140 mA + drive unit load
Performance Drive: 8 A cont., 16 A for 1 s
Interfaces
Network 1xMicroC (NMEA2000)
Feedback Variable voltage/resistive 0-5V
Drive output To PUMP-1 or HELM-1
Power supply 9-31.2 V DC
Solenoid 12/24V DC, common, load range 10mA to 10A, off current <1mA
Clutch 12/24V DC, min 10mA, max 3A
Precision 9
Dimensions: H: 36 mm (1.42”), W & D: 119 mm (4.69”)
Weight: Module:|165 g (5.8 oz), Bracket:|130 g (4.6 oz)
Supply and interface: 8-16 V via NMEA 2000
Power consumption: 0.4 W
NMEA 2000 Load Equivalence No. (LEN): 1
NMEA 2000 ports (input/output): 1
Calibration: Automatic (User Prompted)
Repeatability: ± 1.0° (or better)
Roll/Pitch range: ± 45°
Heading accuracy: ± 2° after calibration
Dynamic performance: with random excitation of ± 10° at max 1 Hz:|Heading error <2°: with heading step input of 90° at a rate of 10°/s: |Heading error 10 sec. after turn <2°
Environmental protection: IPx7
Compass safe distance: 0.5 m (1.7’)
Temperature range operation: -25 to +65°C (-13 to +149°F)
Temperature range Storage: -30 to +70°C (-22 to +158°F)
